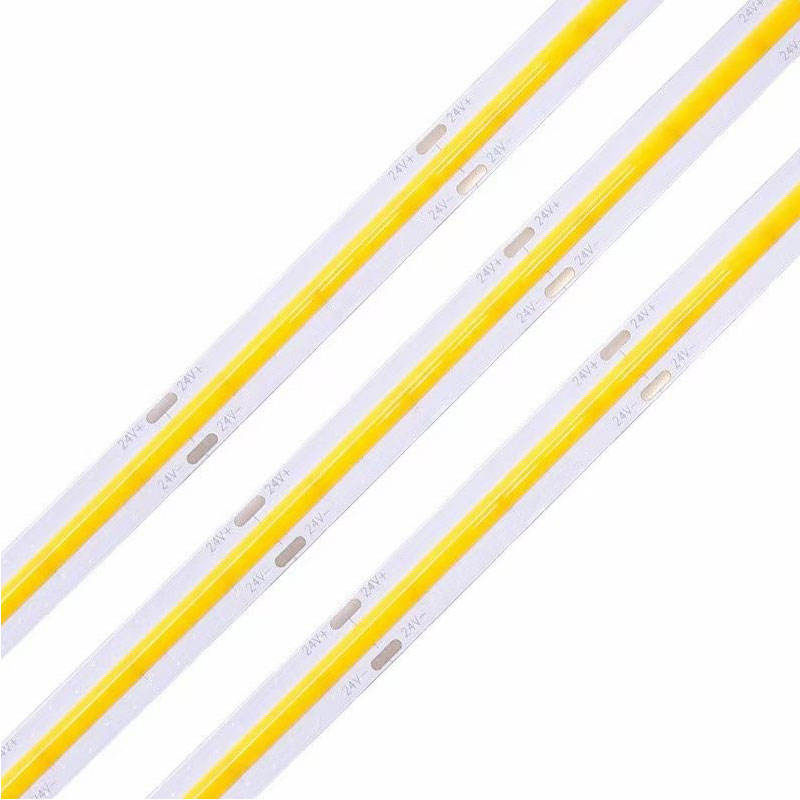

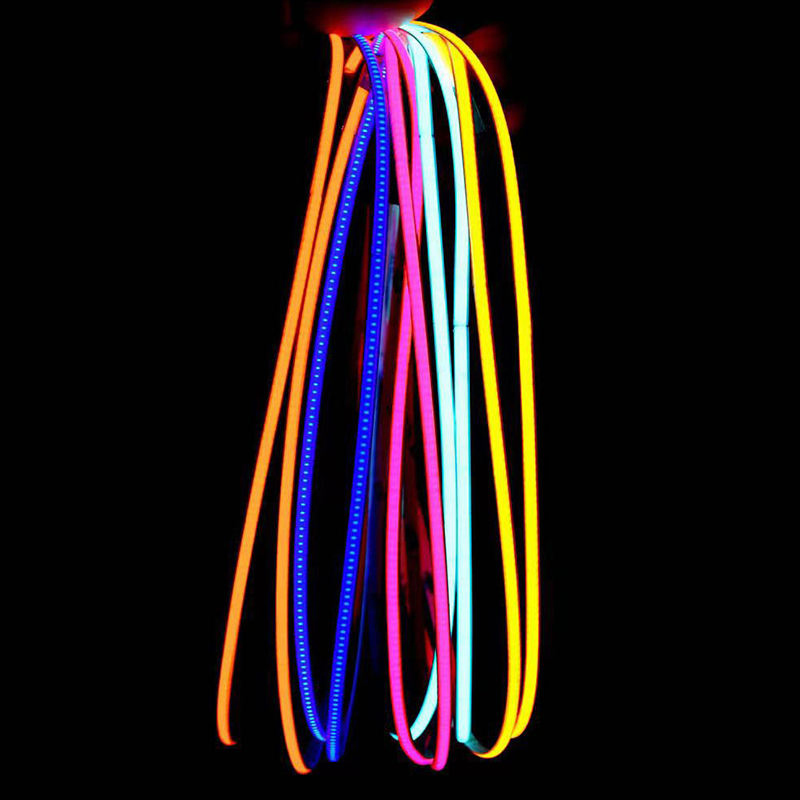

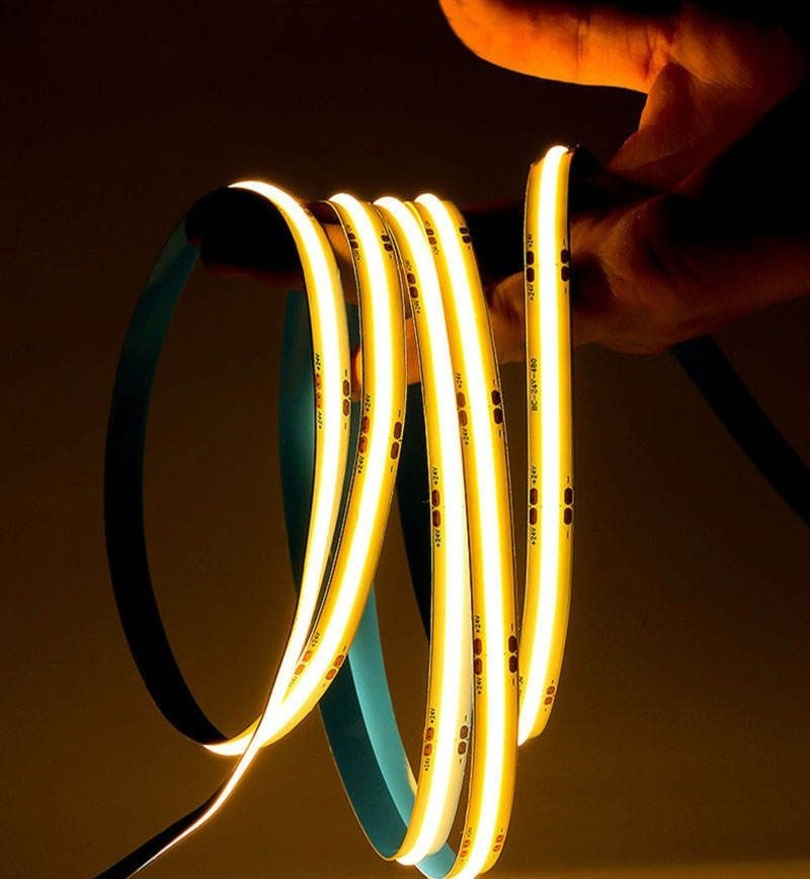

High-Quality 320 LEDs 12V/24V Flexible COB LED Strip Light

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO. AR-LS-COB-320D

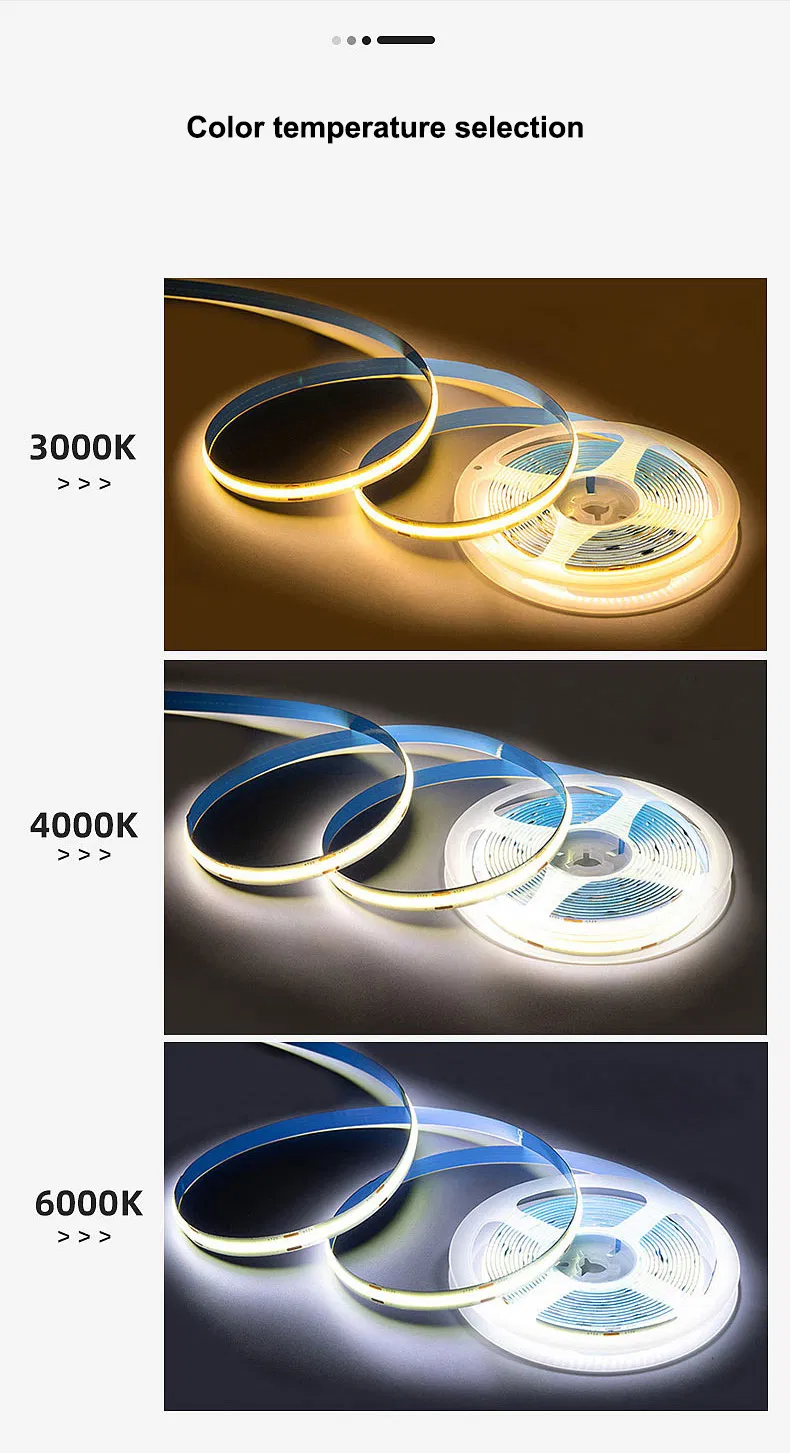

Emitting Color White / Cold White / Warm White
Input Voltage DC 12V / 24V (AC 85-165V compatible drivers)
IP Rating IP54 / IP22
Power 13W/M
Lumens 80-120LM/W
CRI Ra > 90
Beam Angle 180 Degree
FPC Width 10MM
Warranty 3-5 Years
📦

Packaging & Delivery

Package Size 120.00cm * 20.00cm * 9.00cm
Gross Weight 0.250kg

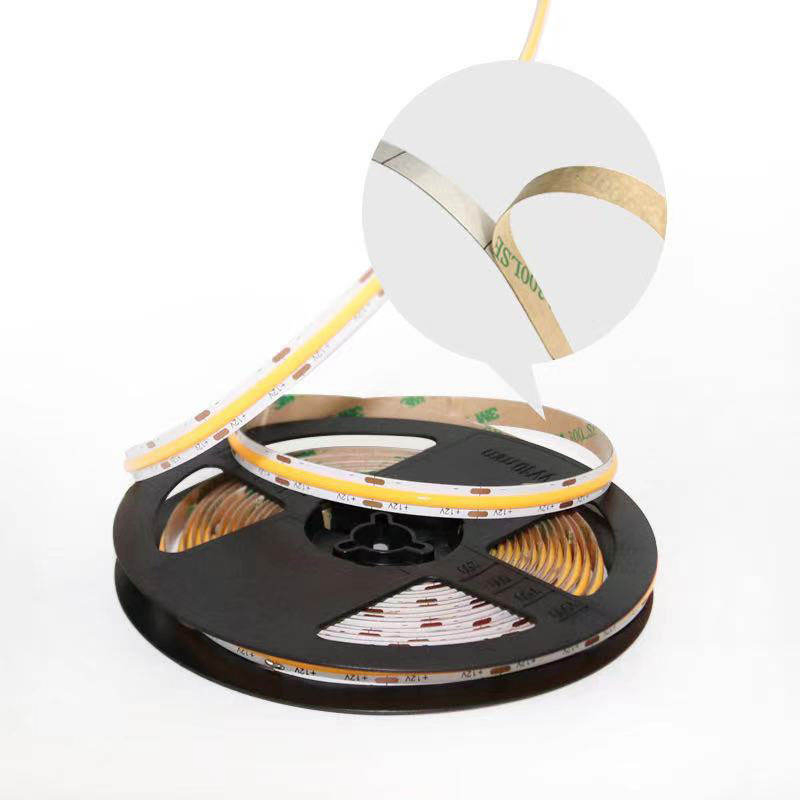

Standard Qty 5m/roll (16.4ft) or 10m/roll (32.8ft)
🖼️

Product Showcase

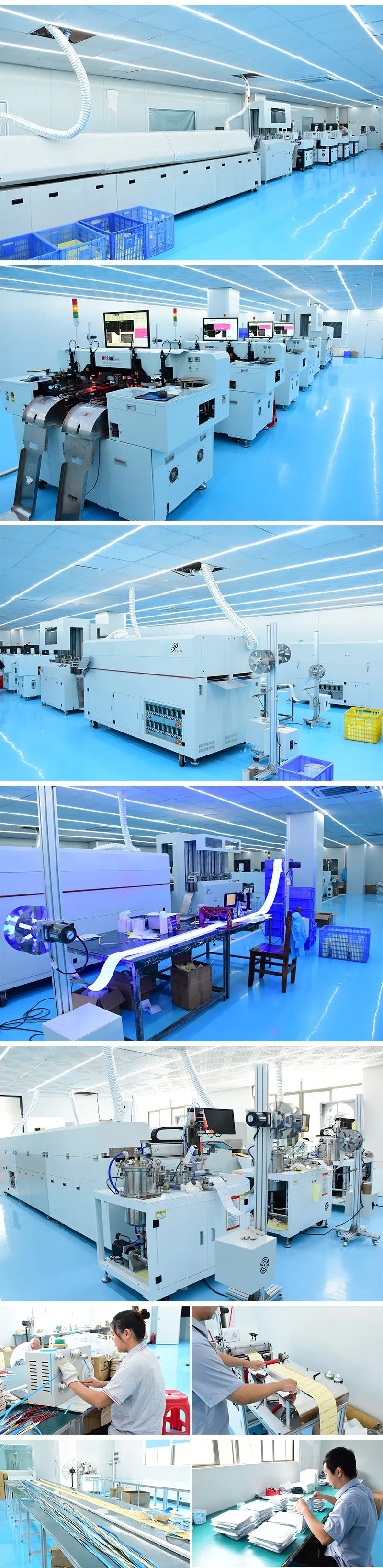

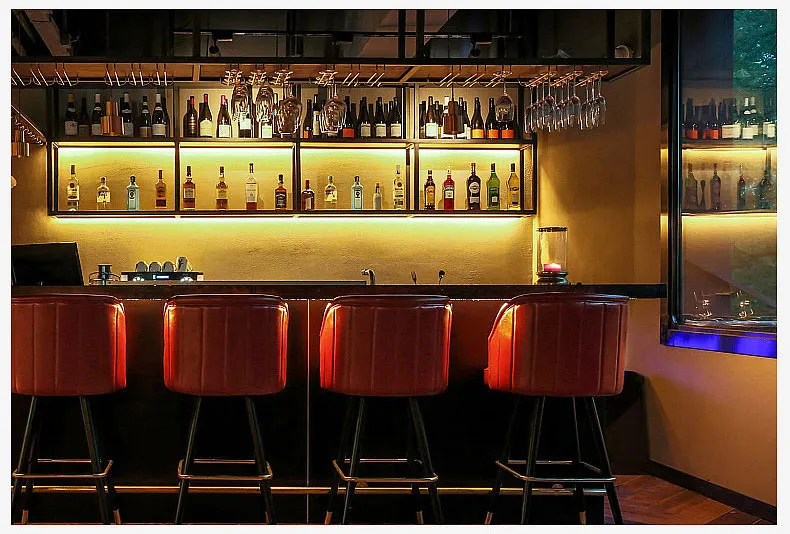

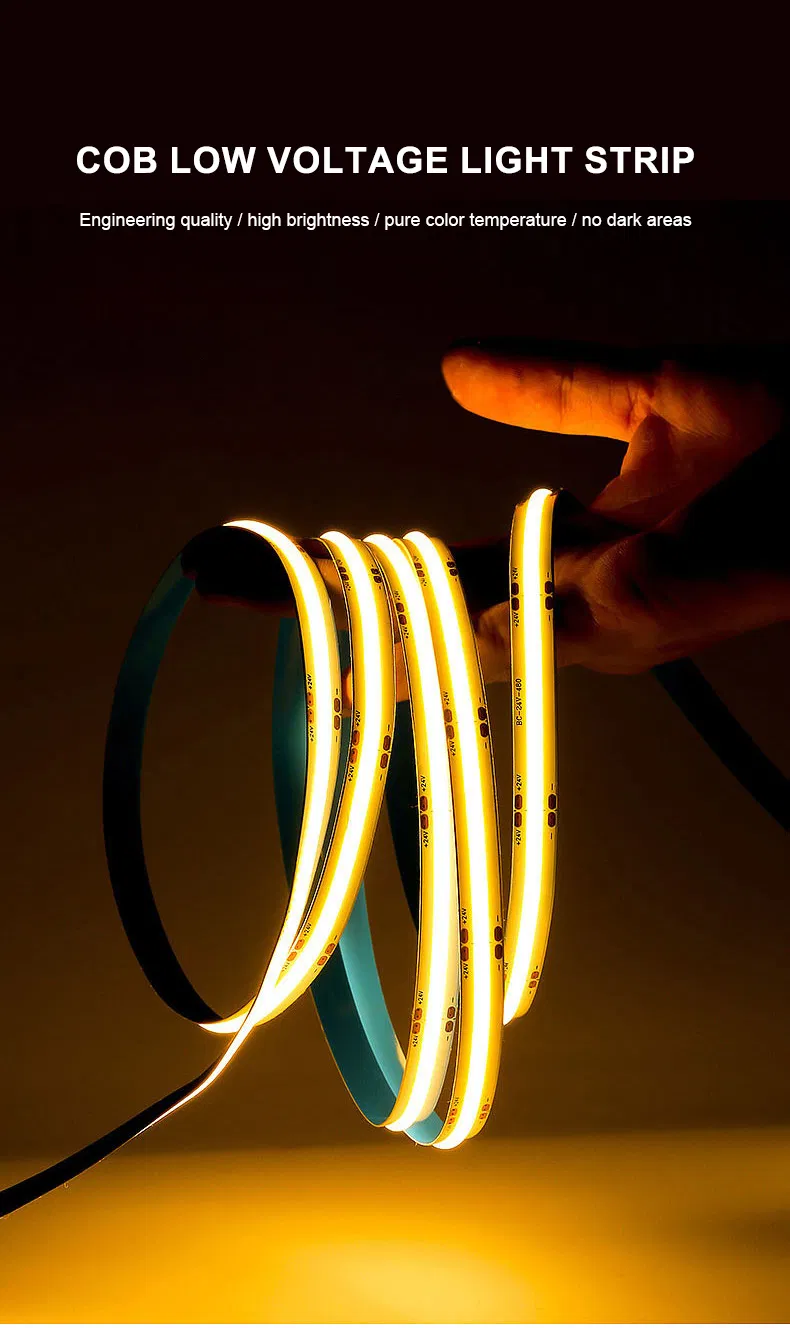

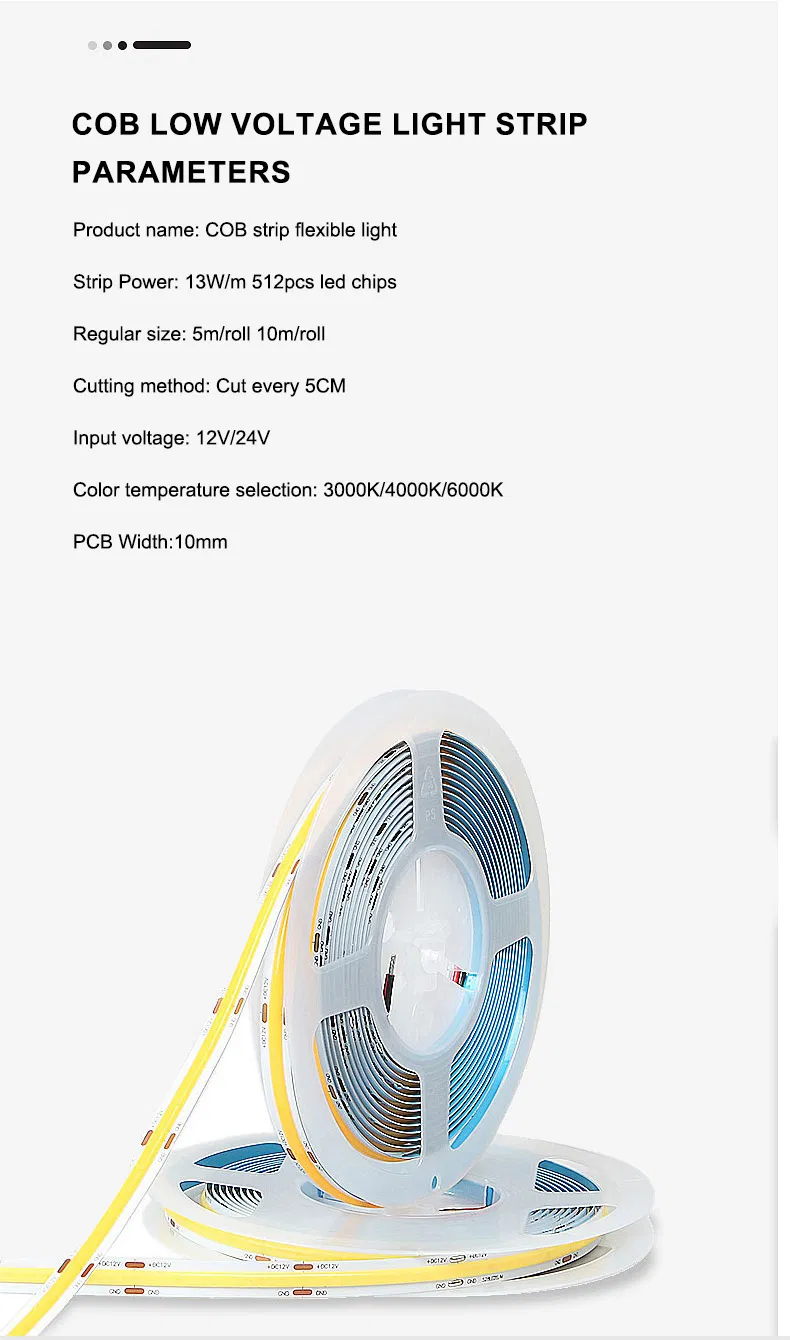

COB Strip Overview Technical Specifications Chart Full Product Range Manufacturing Excellence

Frequently Asked Questions

What is the advantage of COB LED strips compared to SMD?
COB (Chip on Board) strips provide a seamless, dot-free linear light effect even without a profile diffuser, and they offer better flexibility and heat dissipation.

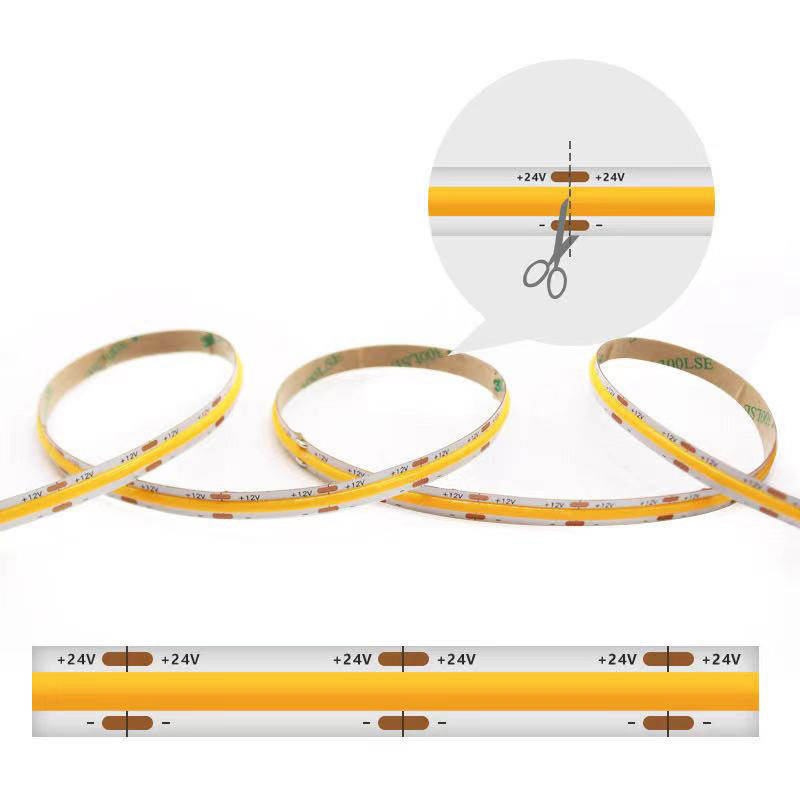

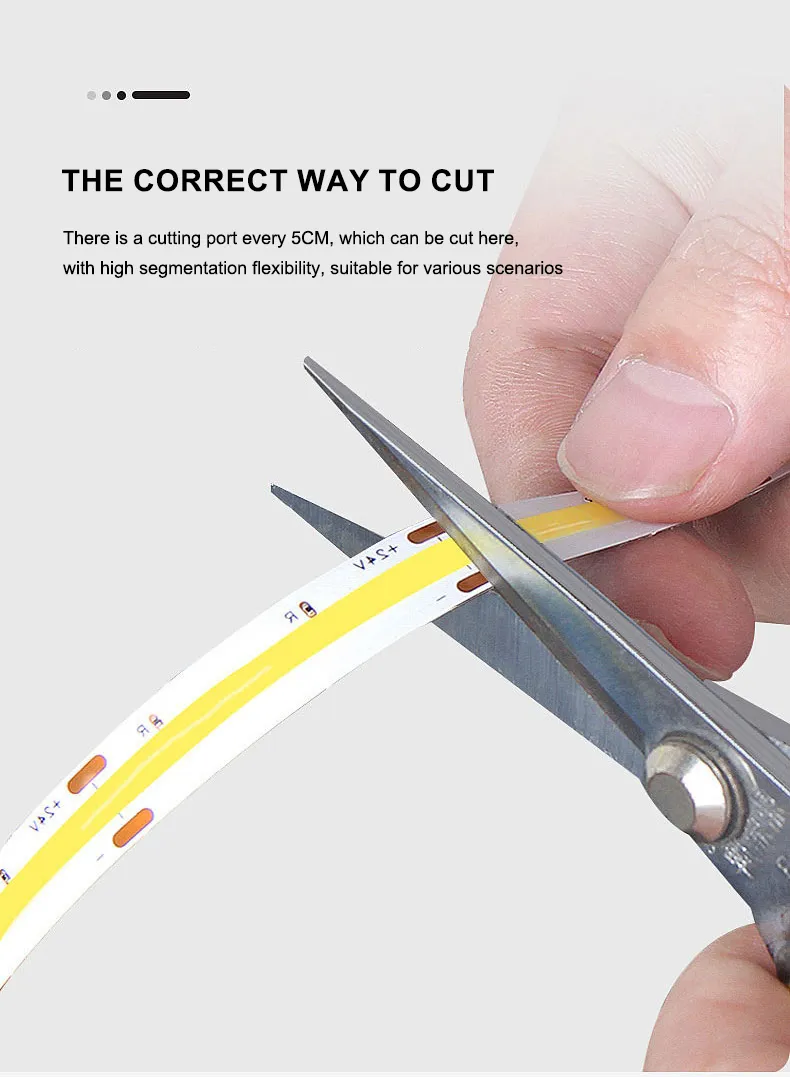

Can this LED strip be cut to size?
Yes, the strip features designated cutting points. Please ensure you cut only along the marked lines to maintain circuit integrity.
Is the Ra > 90 CRI important?
Absolutely. A CRI over 90 ensures that colors appear vibrant and true to life, which is essential for high-end residential and commercial displays.
What is the difference between IP22 and IP54 ratings?
IP22 is suitable for indoor dry environments, while IP54 provides protection against dust and splashing water, making it more durable for varied indoor conditions.
Do you support OEM or ODM services?
Yes, we provide full OEM and ODM services to meet specific project requirements, including custom lengths, power, and color temperatures.
What voltage should I choose: 12V or 24V?
24V is generally recommended for longer runs to minimize voltage drop, while 12V is common for shorter decorative applications or automotive use.
