Products Description

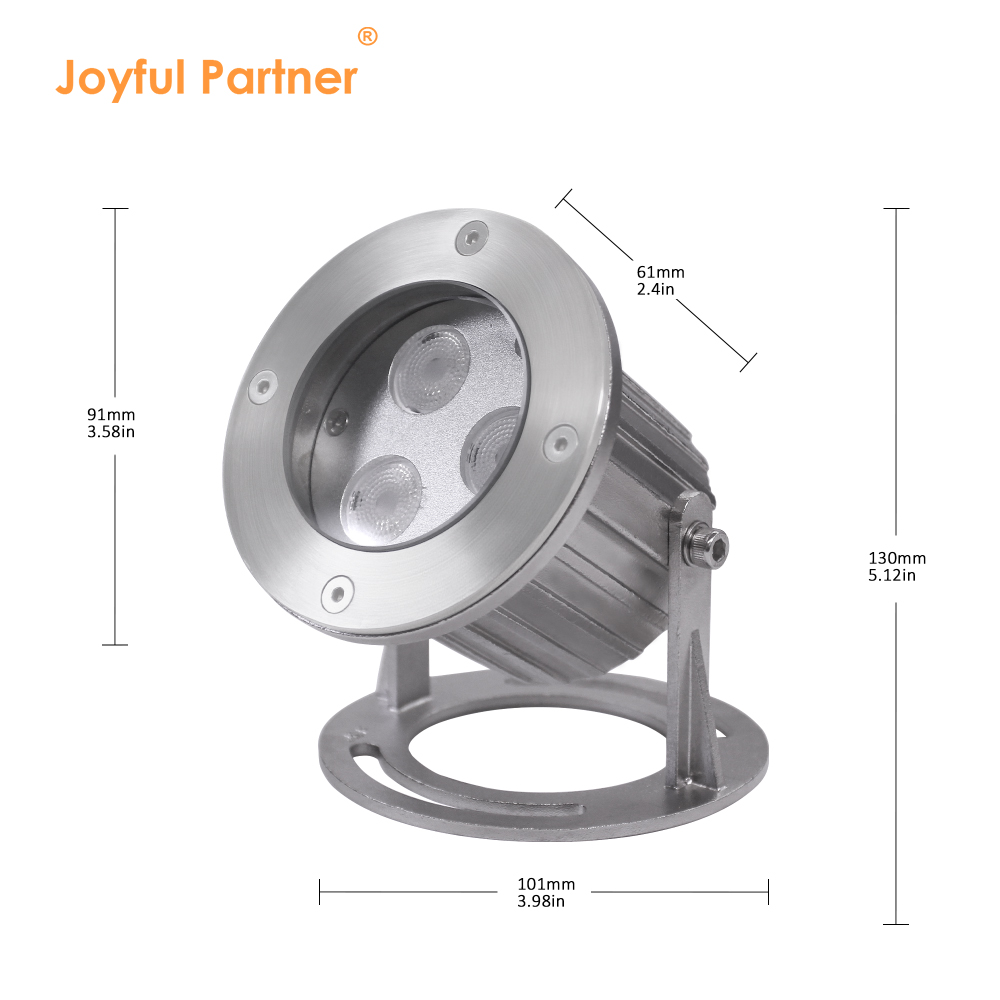

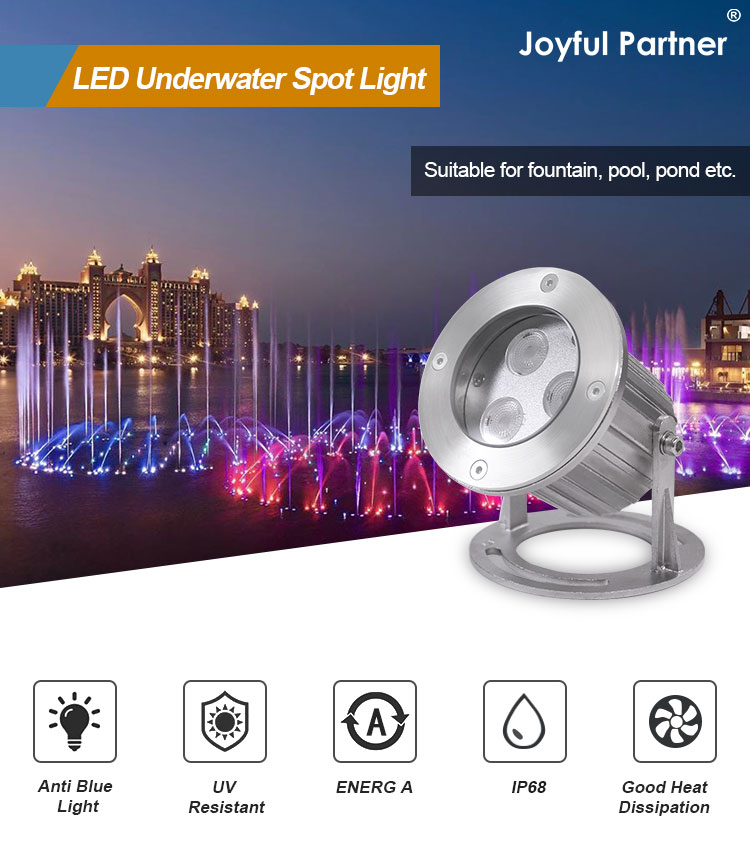

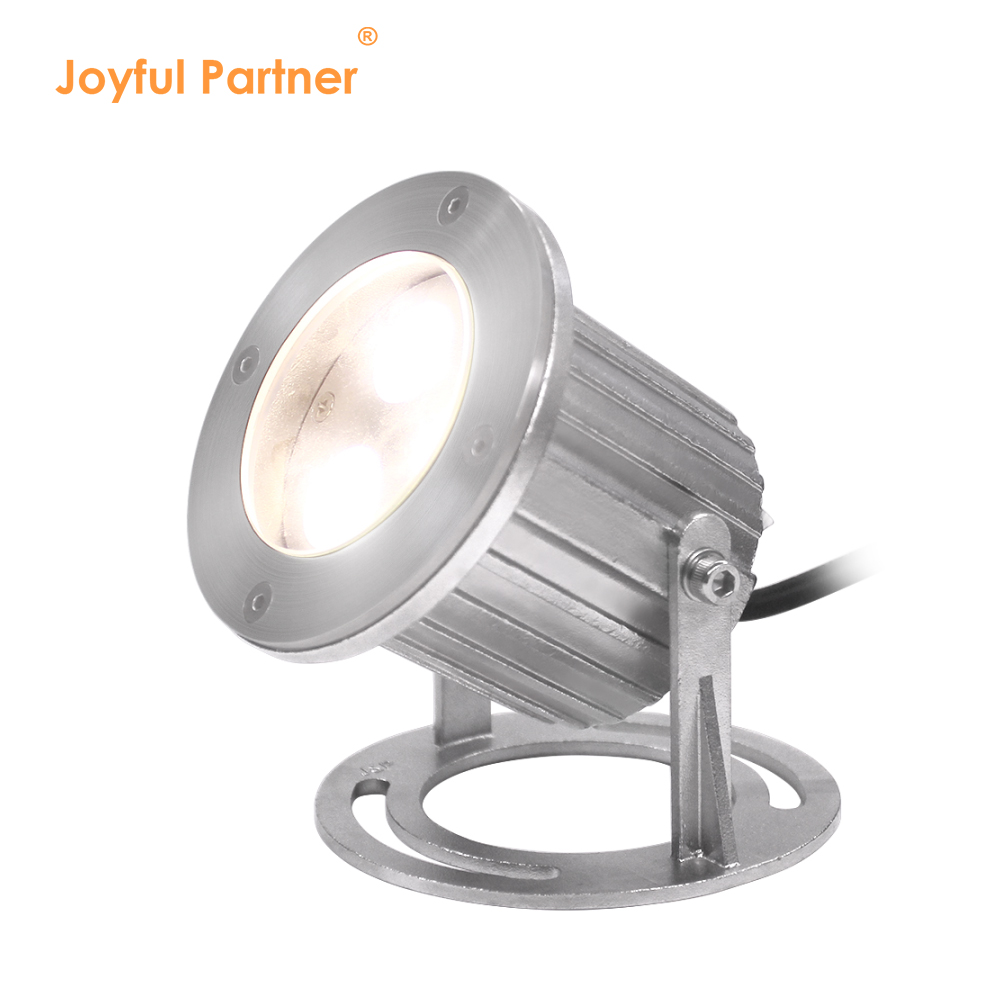

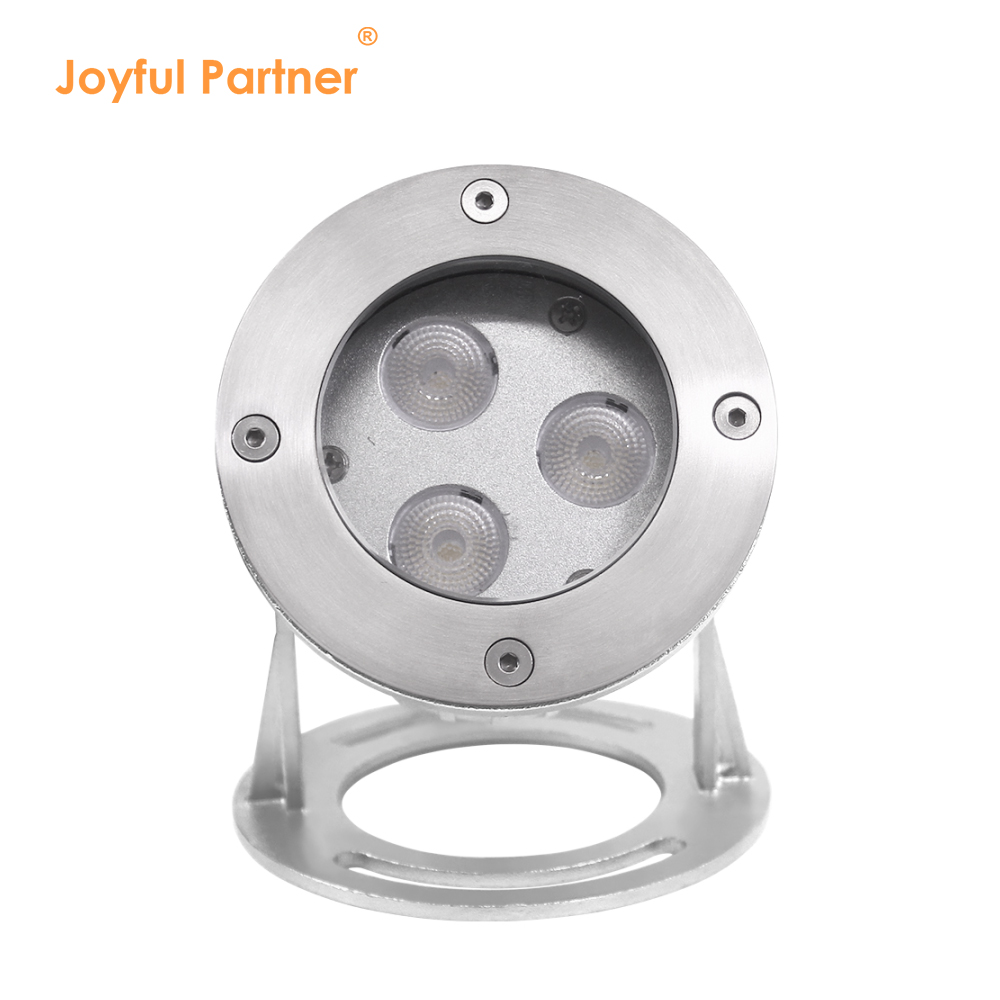

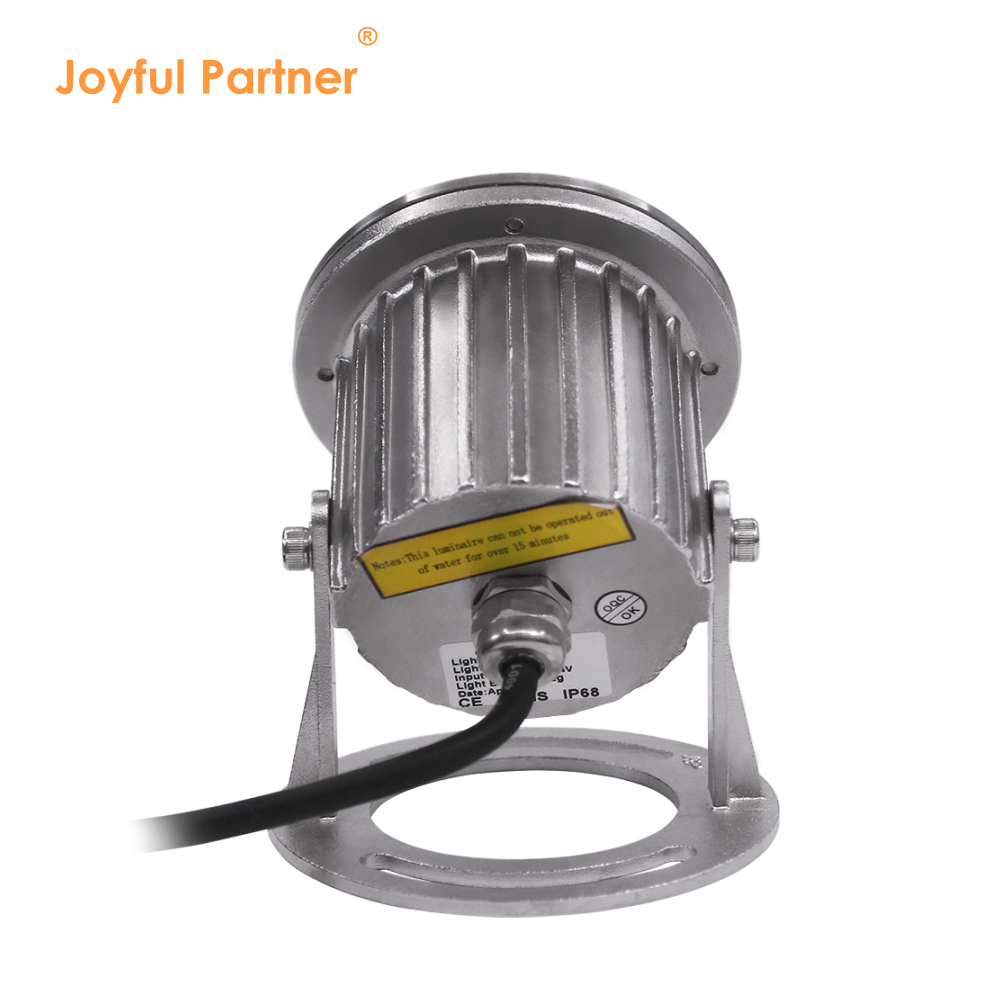

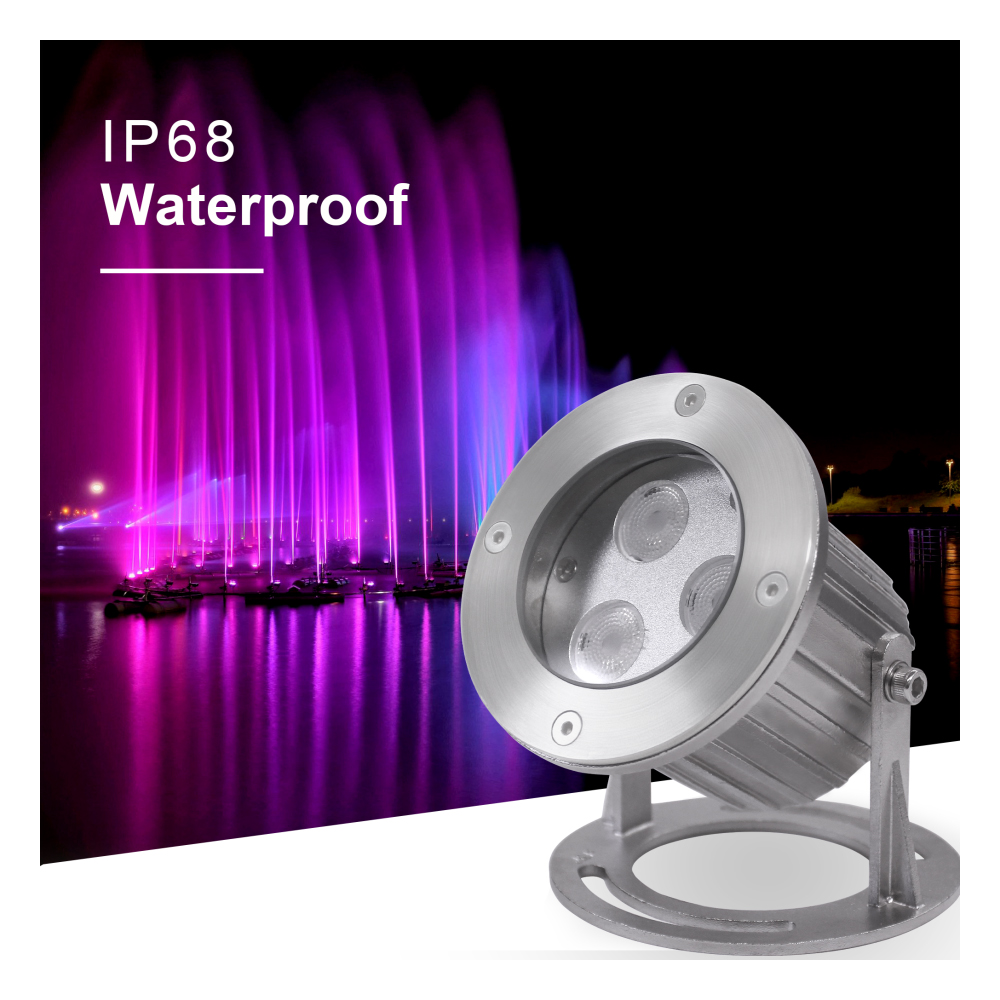

High Brightness Underwater Spot Light Ip68 Waterproof Rgb Led Underwater Stainless Steel Submersible Fountain Lighting
| Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
| 90031 | 3*1W LED | 8°/15°/25°/30°/45°/60°/90° | 3.2 | DC12V/DC24V | 5 |
| 90032 | 3*2W LED | 8°/15°/25°/30°/45°/60°/90° | 6 | DC12V/DC24V | 5 |
| 90033 | 3*1W RGB LED | 8°/15°/25°/30°/45°/60°/90° | 3 | DC12V/DC24V | 5 |
| 90034 | 3*2W RGB LED | 8°/15°/25°/30°/45°/60°/90° | 6.1 | DC12V/DC24V | 5 |
| 90036 | 3*3W RGB3in1LED | 25°/30°/45°/60° | 3.3 | DC12V/DC24V | 5 |
| Material Specifications |
| Housing | Hard chromeplated molding shaped 304# or 316L# Stainless Steel |
| Bracket | Stainless steel 304# or 316L# |
| Front cover | Stainless steel sus304# or sus316L# |
| LED | Epistar or CREE&OSRAM, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient ≥2.0w/mk |
| Cable gland | IP68 PG11 nickel coated copper |
| Lens | Optical lens, efficiency ≥85% |
| Gasket | Silicone gasket |
| Glass | Step tempered glass T=5mm |
| Power cable | H05RN-F 2*0.75mm² L=2m (Single Color) / 4*0.75mm² (RGB) |
| Application temperature | Temperature of water between (-20℃~40℃) |

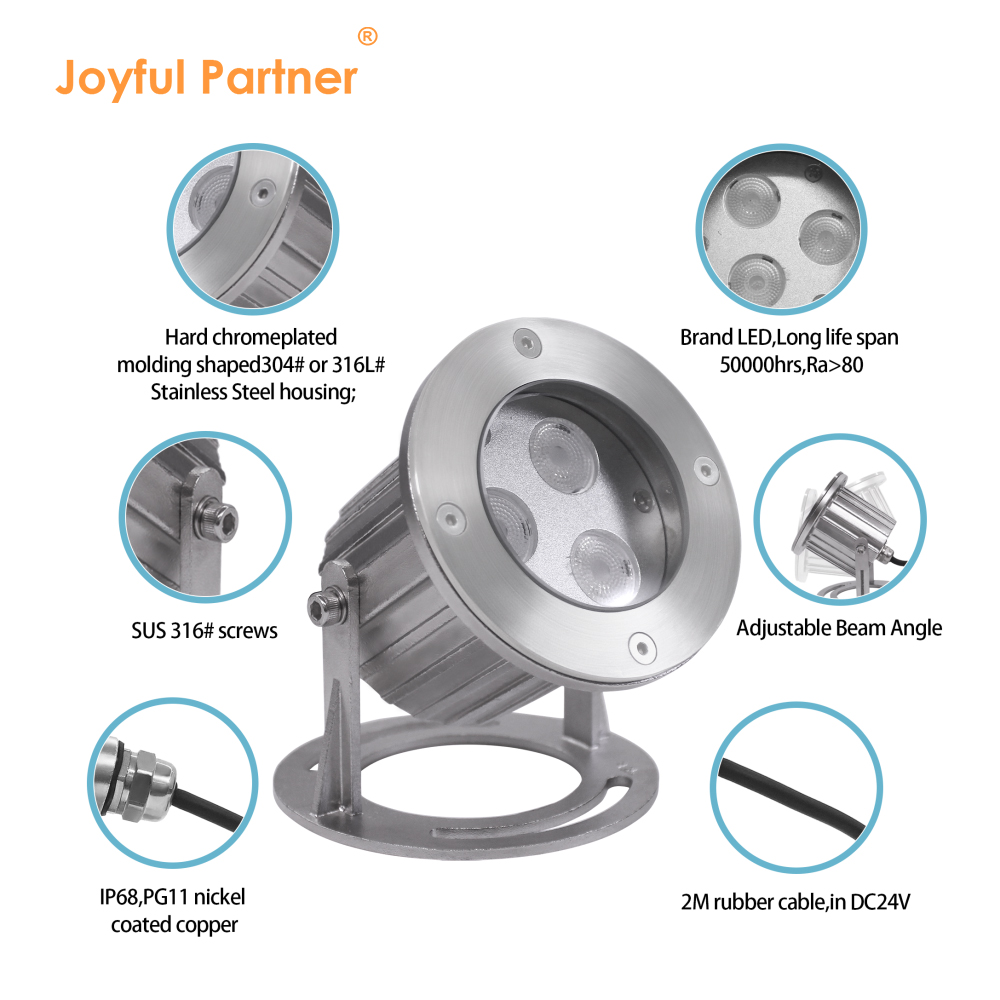

- Hard chromeplated molding shaped 304# or 316L# Stainless Steel housing
- High light transmittance tempered glass
- SUS 316# screws for maximum durability
- Super bright brand LED, Long life span, Ra>80
- IP68 PG11 nickel coated copper connector
- 2m rubber cable, supports DC24V input
Quality Standards & Certifications
Frequently Asked Questions
What is the waterproof rating of these underwater lights?
These lights are IP68 rated, meaning they are completely dust-tight and suitable for continuous immersion in water under specified conditions.
What materials are used for the housing?
The housing is made of high-quality hard chromeplated molding shaped 304# or 316L# stainless steel, ensuring excellent corrosion resistance.
Can I choose different beam angles for the lens?
Yes, we offer multiple lens beam angles including 8°, 15°, 25°, 30°, 45°, 60°, and 90° to suit different lighting requirements.
What is the operating voltage for these submersible lights?
The lights operate on safe low voltage, specifically DC12V or DC24V, making them safe for underwater installations.
Are the RGB colors controllable?

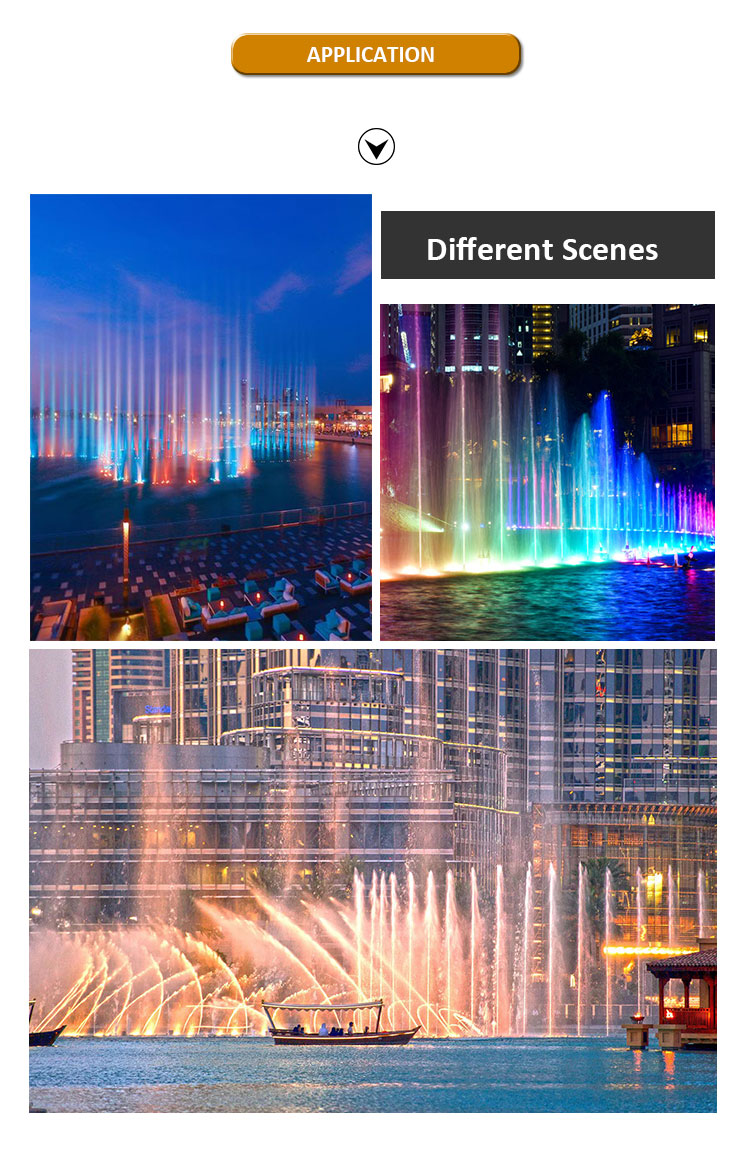

Yes, we provide RGB and RGB 3-in-1 LED options which allow for dynamic color changing effects in fountain and pool applications.
What is the thickness and type of the glass cover?
The light features a 5mm thick step tempered glass, which provides high light transmittance and strong impact resistance.
