Made by special anti-UV materials and a unique installation structure, this lamp can be installed in various environments. It is designed for ease of use and can be customized according to actual needs.
| Type | Power (W) | Length (MM) | Disinfection Volume (M³) | Long Life (Hrs) |
|---|---|---|---|---|
| JF20WT5 | 20 | 470 | 4 | 9000 |
| JF20WT5 | 20 | 470 | 6 | 9000 |
| JF30WT5 | 30 | 650 | 8 | 9000 |
| JF40WT5 | 40 | 870 | 10 | 9000 |
| JF80WT5 | 80 | 870 | 20 | 9000 |
| JF120WT5 | 120 | 1220 | 30 | 9000 |
| JF150WT5 | 150 | 1620 | 35 | 9000 |

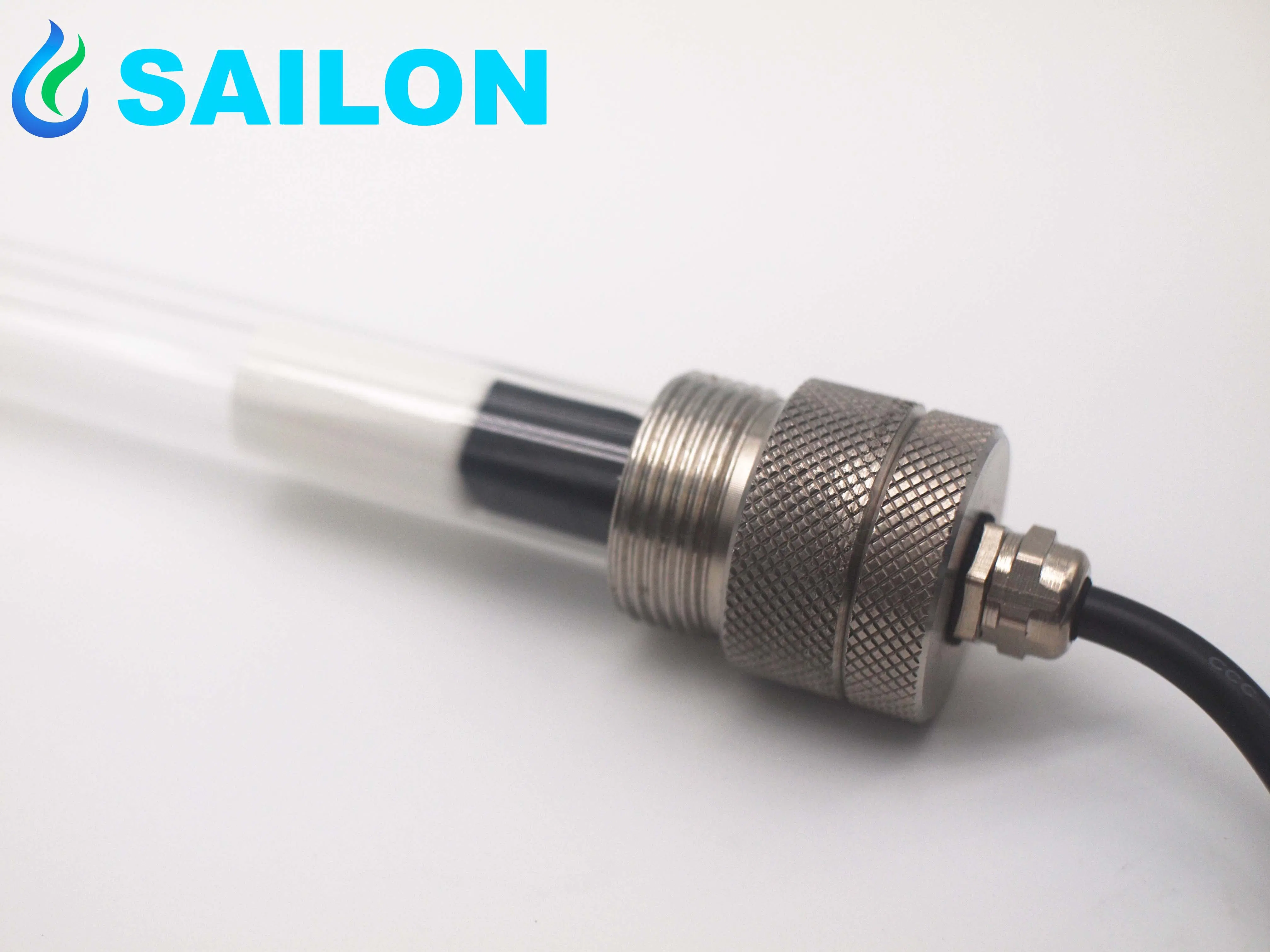

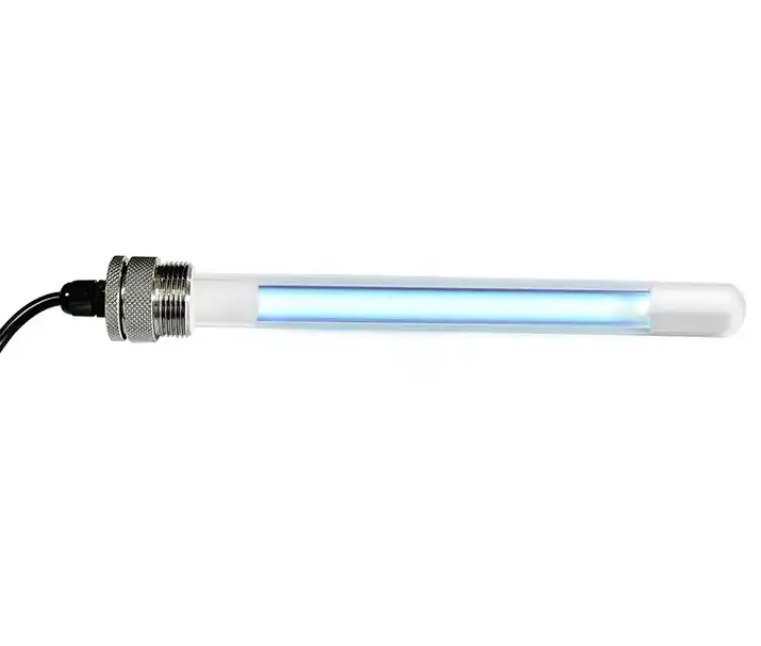

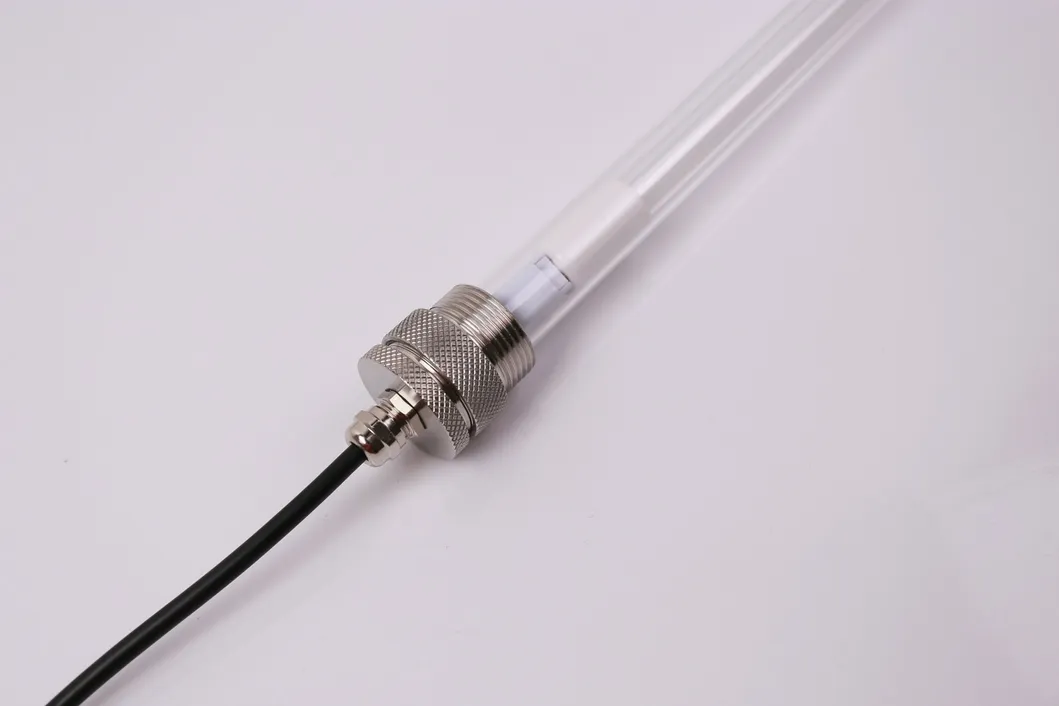

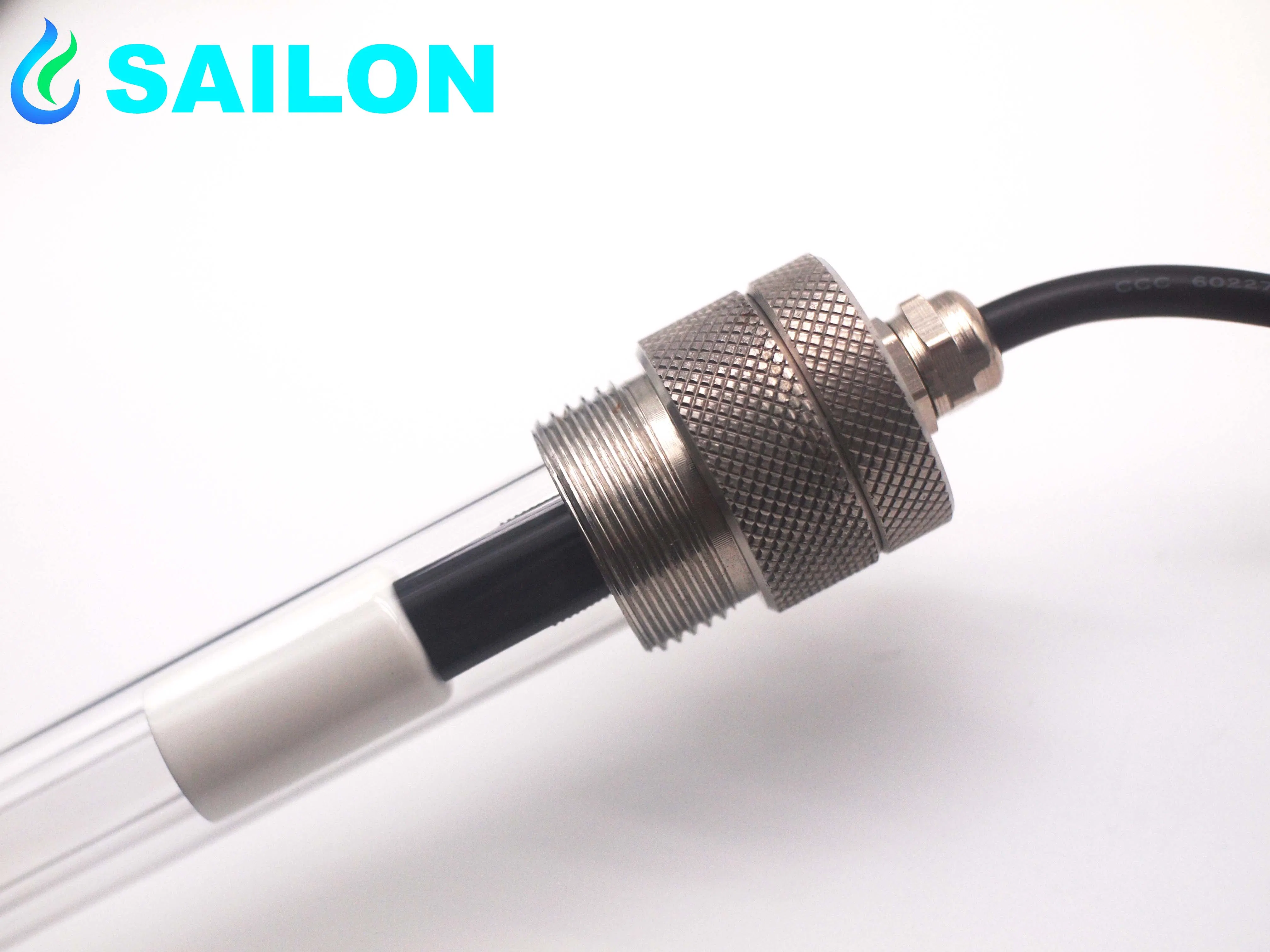

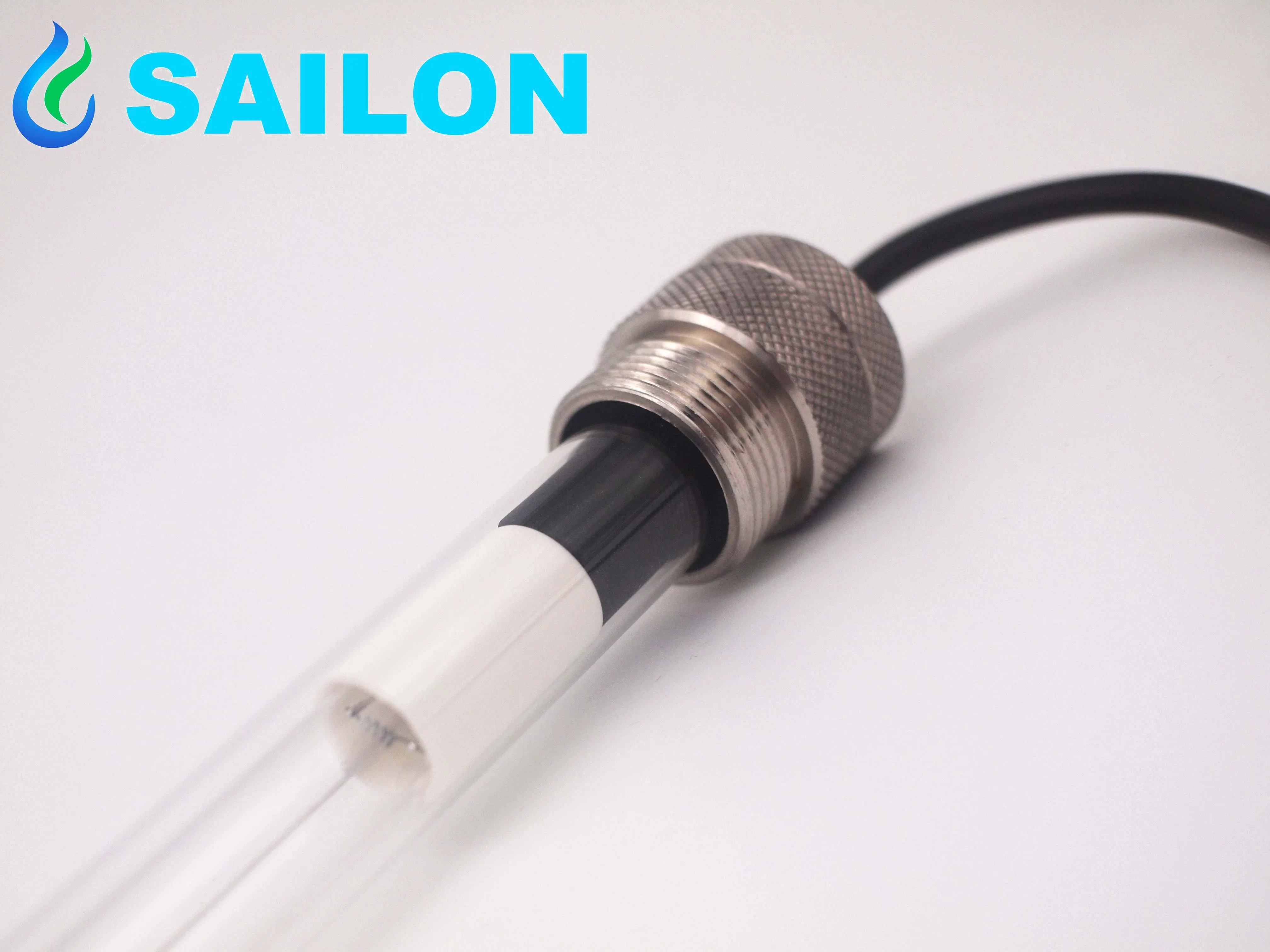

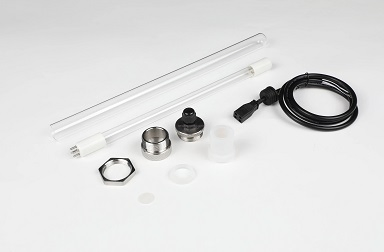

The TUV-JW40 Split Type submersible lamp contains an integrated UV lamp and a ballast suitable for air, surface, and water applications. Boasting an IP60 rating, it features high-purity quartz sleeves with a 23mm diameter. It is easy to install and maintain, with multiple lengths available and options for ozone or ozone-free configurations.
★ Waterproof structure: safe and reliable.
★ High purity quartz: 10,000 hours long life.
★ UV transmission ≥90%: high UV output.
★ Energy saving: imported high-quality components.

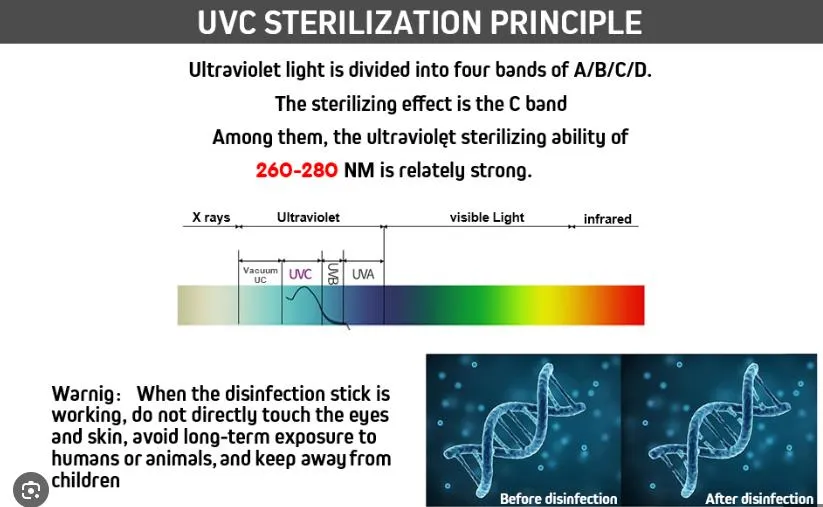

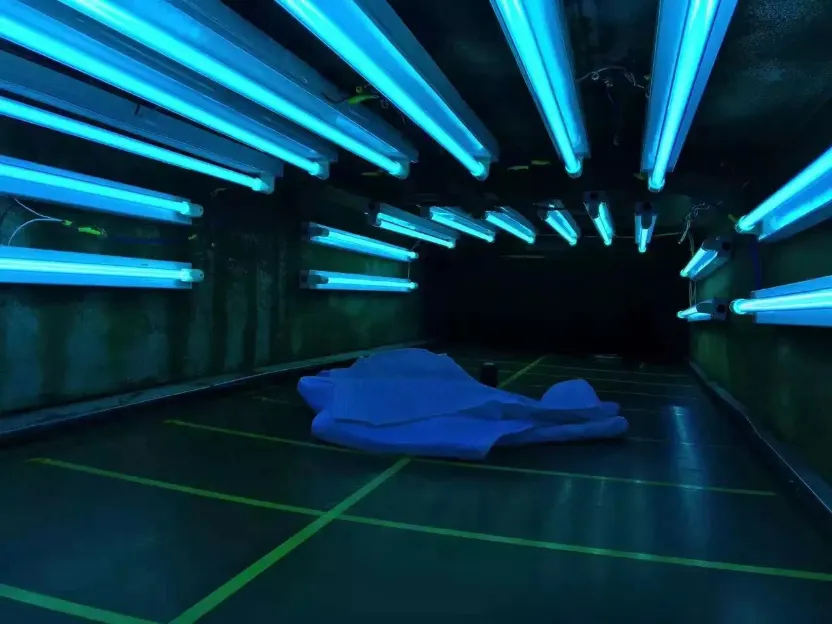

How it works: UV-C ray destroys the DNA of bacteria and viruses, causing them to lose reproductive ability. It is a chemical-free process that leaves no harmful residue, making it a superior alternative to traditional chemical disinfection methods for air, surfaces, and water.
