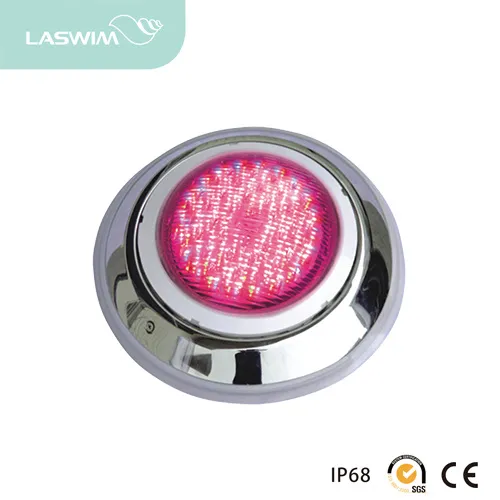

Premium Submersible LED Lighting for Pools and Aquariums

1 / 3

Premium Submersible LED Lighting for Pools and Aquariums

Customization:	Available
Waterproof Standard:	IP68
Lamp Body Material:	Stainless Steel

Send Inquiry

Product Description

Product Overview

Model NO.

WL-PA Series

Emitting Color

White Color/RGB Color

Application

Swimming Pool, Fountain, Pond

Certification

Voltage

12V

Material

Stainless Steel

Waterproof

IP68

Installation

Wall Mounted Type

Power Options

12W - 150W

Diameter

300mm

Product Features

High-quality stainless steel material with a gliding, elegant design.

Excellent heat radiation performance for long-lasting LED life.

Nicheless flat design: Directly mounts to pool walls with a bracket plate.

Safety low voltage: Operates on AC12V.

Versatile lighting: Available in Cool White, Warm White, RGB, and Single Blue.

Advanced RGB Control: Features 19 pre-programmed lighting patterns.

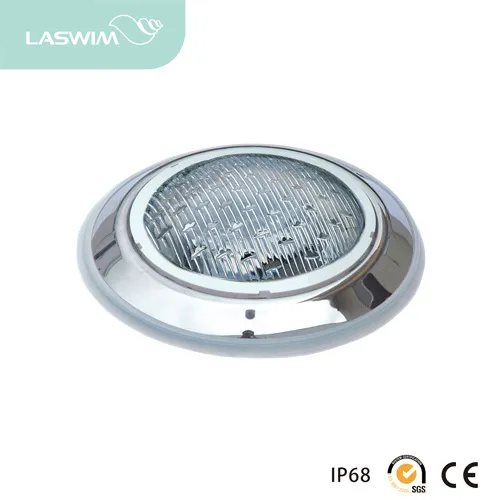

Detailed Photos

Technical Parameters

Model	Power(W)	Voltage(V)	LED QTY	Light Source	Color	Lumination
WL-PA-LED252BB	18W	12V	252	Standard DIP LED	White	530 lux
WL-PA-LED252BC	18W	12V	252	Standard DIP LED	RGB	257 lux
WL-PA-LED012PB	12W	12V	12	High Power	White	885 lux
WL-PA-LED012PC	12W	12V	12	High Power	RGB	200 lux
WL-PA-LED024PB	24W	12V	24	High Power	White	1300 lux
WL-PA-LED024PC	24W	12V	24	High Power	RGB	352 lux
WL-PA-LED036PB	36W	12V	36	High Power	White	1395 lux
WL-PA-LED036PC	36W	12V	36	High Power	RGB	410 lux
WL-BPA100	100W	12V	-	Lamp Bead / Glass	/	/
WL-BPA150	150W	12V	-	Lamp Bead / Glass	/	/

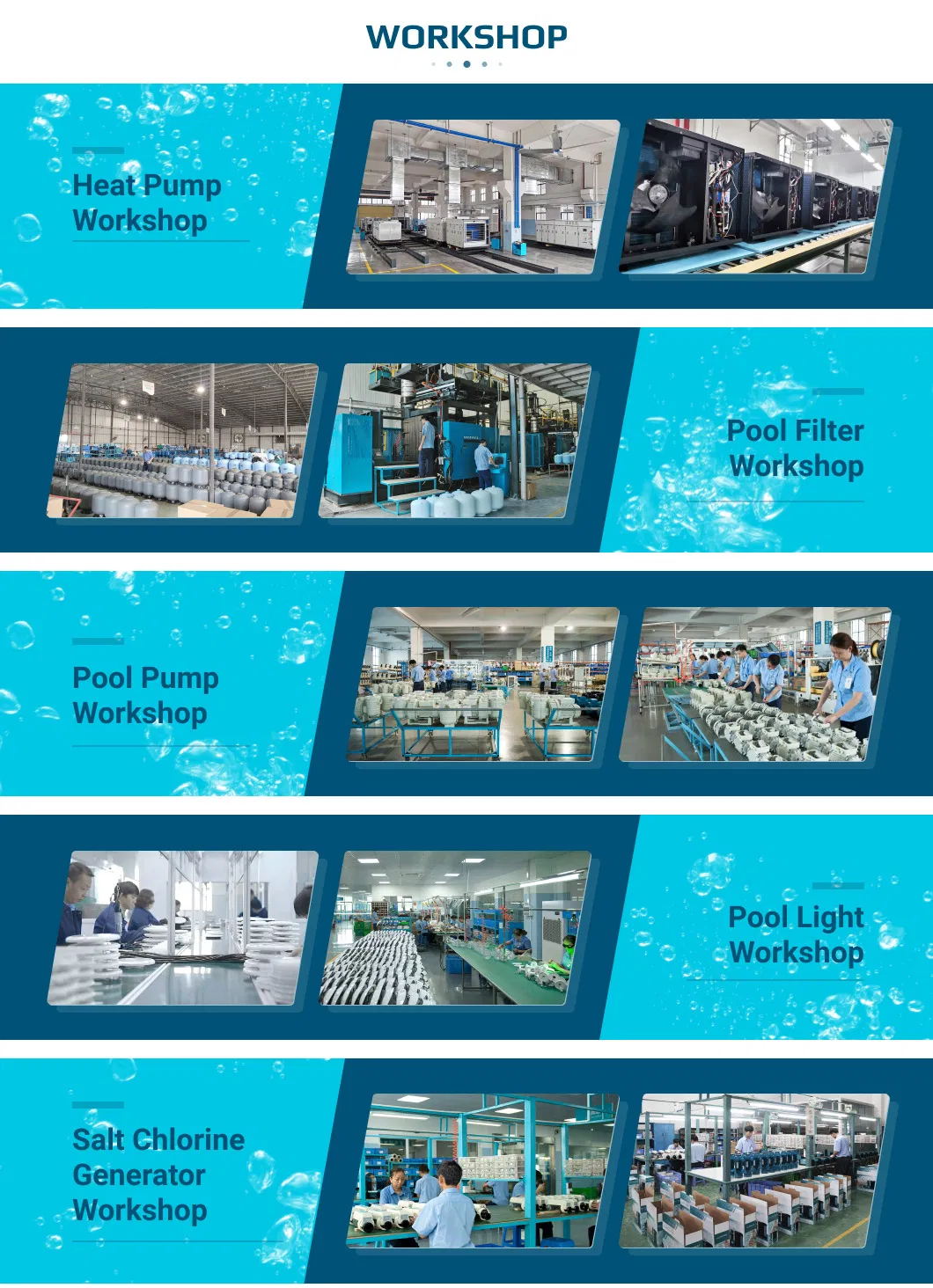

Manufacturing Showcase

Frequently Asked Questions

What is the waterproof rating for these pool lights?

The WL-PA series lights are rated IP68, ensuring they are completely waterproof and suitable for continuous underwater use.

What materials are used in the construction?

The lights are manufactured using high-grade stainless steel for durability and excellent heat radiation, with lens options in PC or tempered glass.

Is the voltage safe for swimming pools?

Yes, these lights operate on AC12V safety low voltage, which is the standard requirement for underwater pool lighting.

How are these lights installed?

They are wall-mounted nicheless lights. They can be mounted directly to the pool wall using a bracket plate, making installation simple and convenient.

Do the RGB lights come with different patterns?

Yes, the RGB mode features 19 pre-programmed lighting patterns to create various atmospheres in your pool or fountain.

What applications are these lights suitable for?

They are ideal for swimming pools, fountains, ponds, and other water feature applications requiring high-quality submersible lighting.
