Basic Info.
Usage
Advertising, Decoration
Installation Mode
Backtape Stick or Screw Fix
Color Temperature
White 2800K 4000K 6500K 10000K
Transport Package
400PCS/Box
Capacity
1,000,000PCS/Month
Product Description

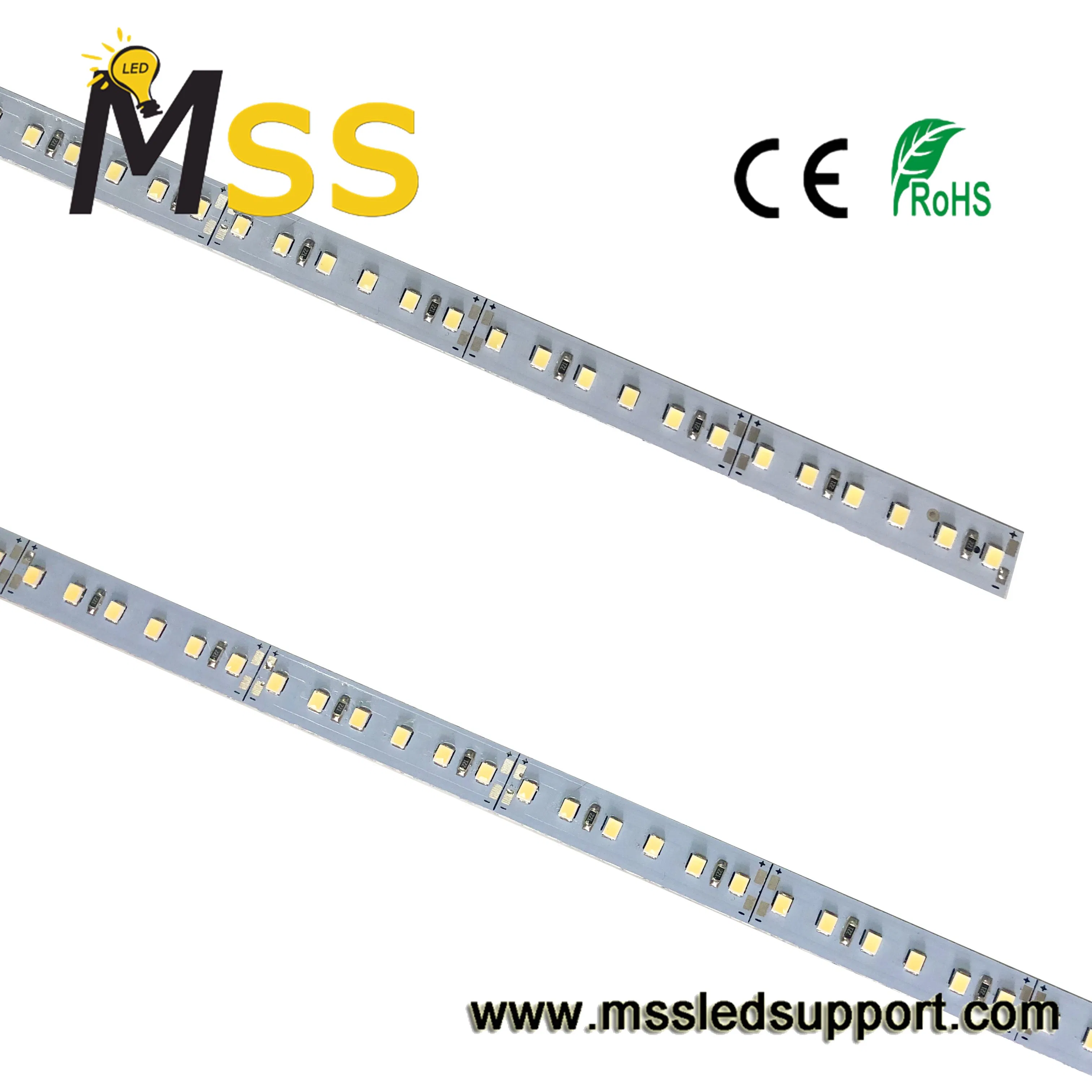

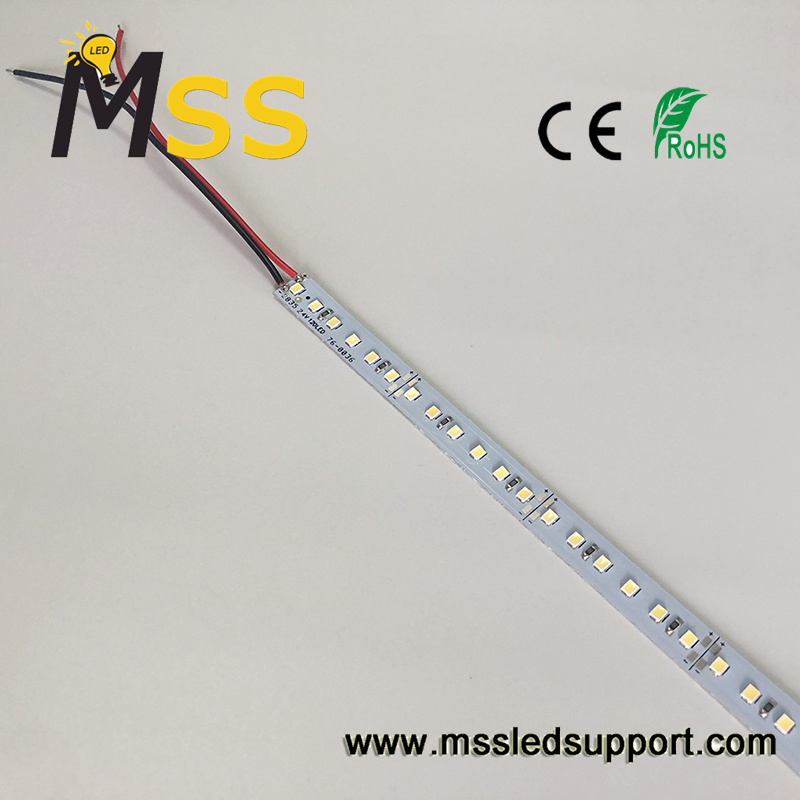

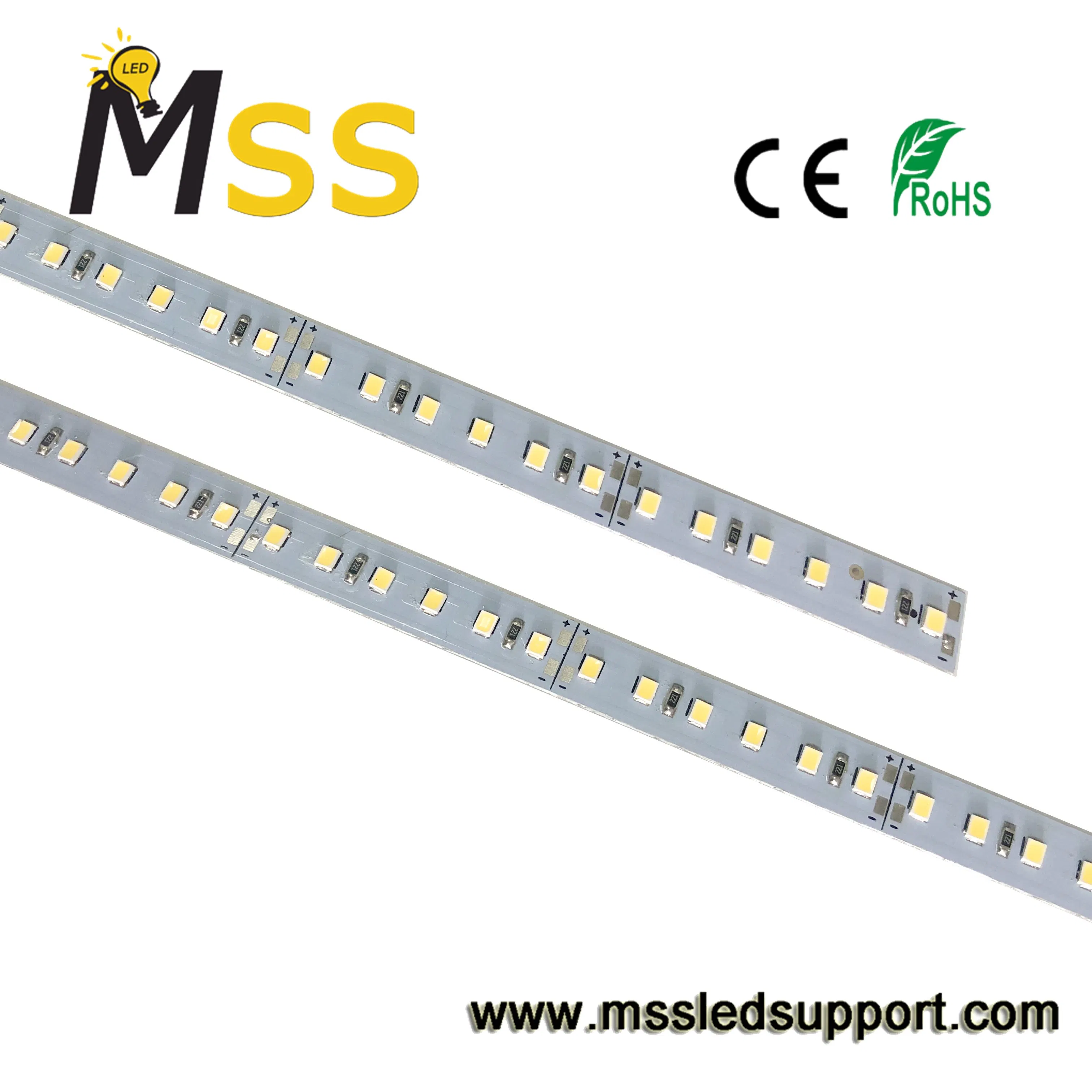

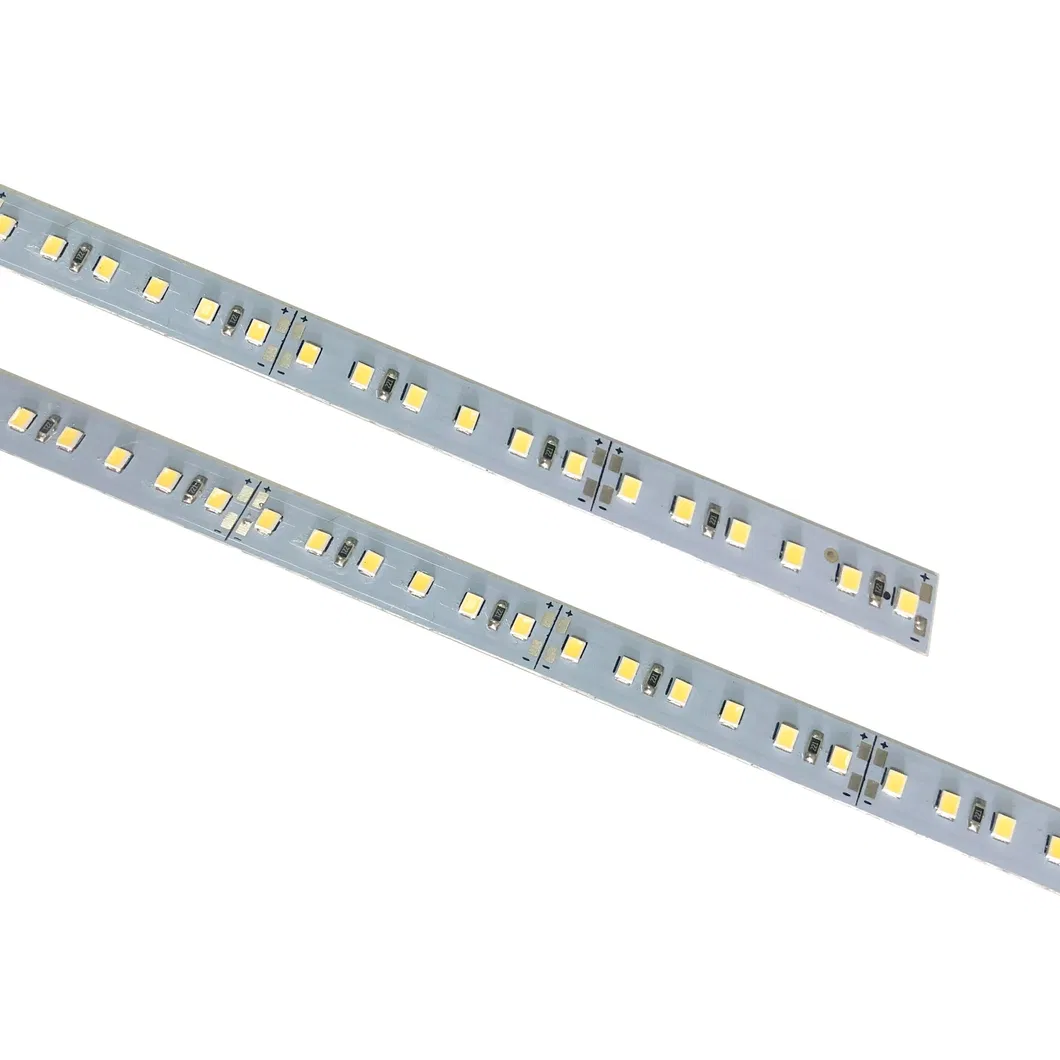

Ultra-bright 130lm/W 8mm 10mm 12mm PCB 12V 24V Led Rigid Strip
Smd 2835 5630 5050 Led Rigid Light Bar Strips for Cabinet light
🛠️
Assembled with PCB hard boards, convenient to process and install for cabinets and walls.
📏
Available in 30, 36, 60, 72, and 120 LEDs; support for customized configurations.
✂️
DC 12V (3-LED) or 24V (6-LED) cuttable design for flexible sizing.
💎

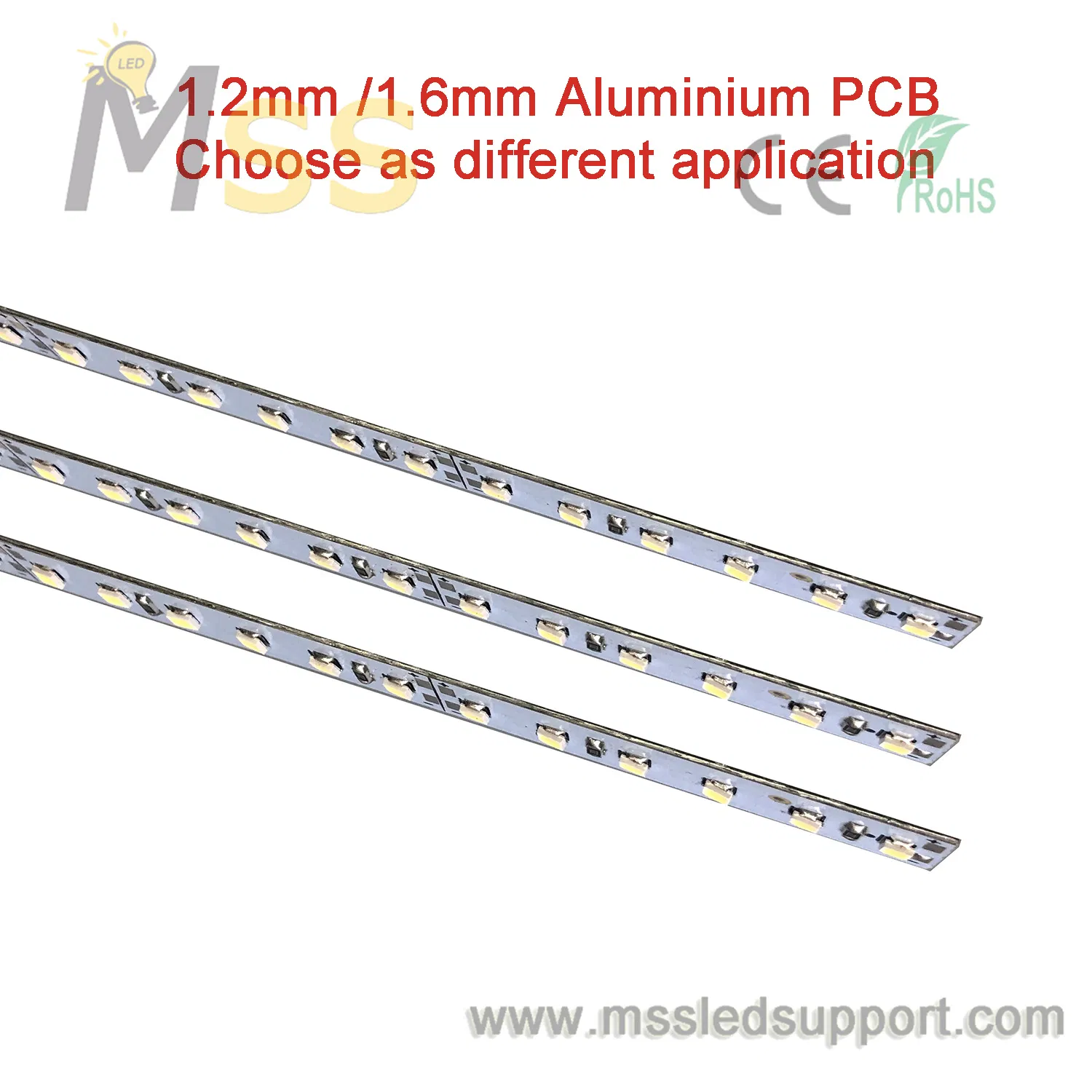

Ultra-thick Aluminum PCB (1.2mm~1.6mm) for superior heat dissipation.
💡

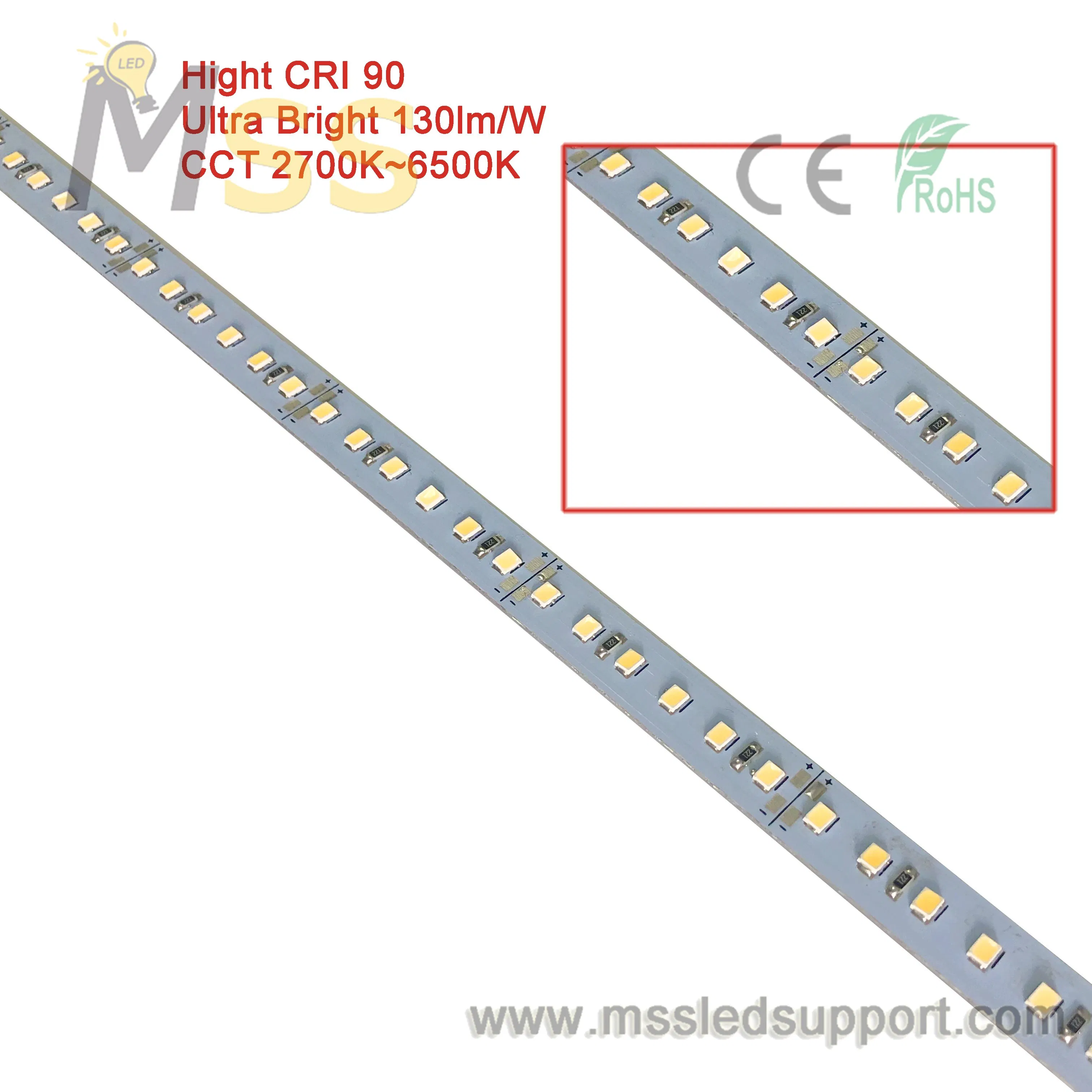

High CRI Ra 90 with 130lm-150lm/watt high efficiency performance.
Detailed Specifications
| Model | RGL100WA |
| LED Qty | 120leds/m |
| LED Type | Epistar SMD 2835 |
| Input Voltage | 12V DC / 24V DC |
| Wattage | 10W/meter |
| Luminous Efficiency | 130-150lm/W |
| Dimension | W8*L990mm (Customizable) |
| Color Temperature | Warm (2800-3200K), Natural (4000-4500K), Cool (6000-6500K) |
| Beam Angle | 120° |
| Lifespan | 50,000 Hours |
| Certification | CE, RoHS |
| IP Grade | IP33 |
| Installation | Screw or Back adhesive |

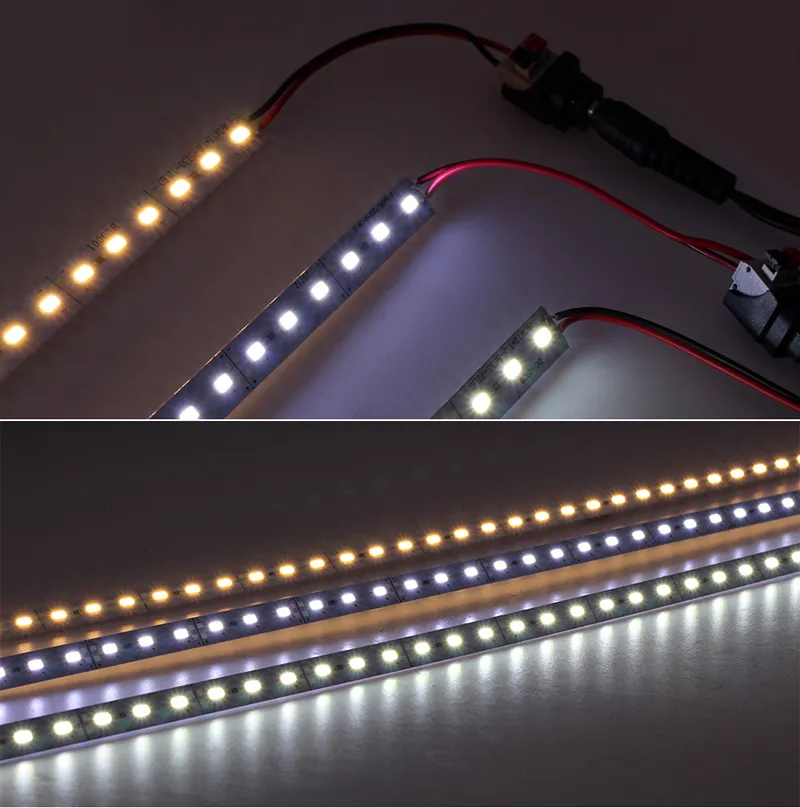

Color Temperature Options

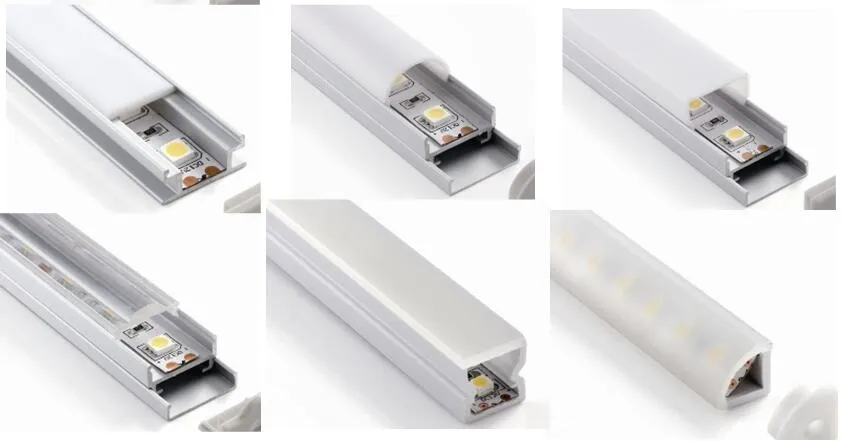

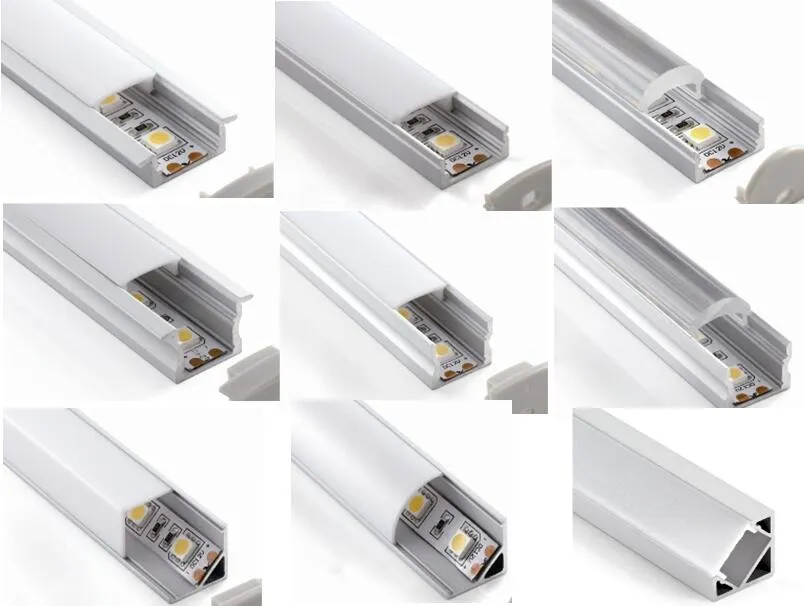

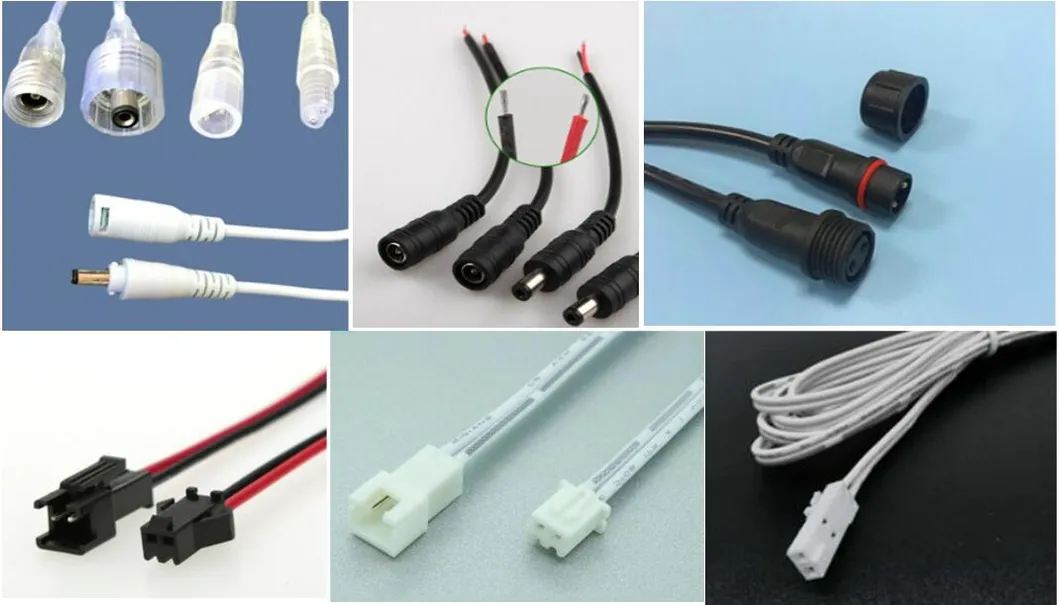

Aluminium Profiles & Connectors
Quality Assurance

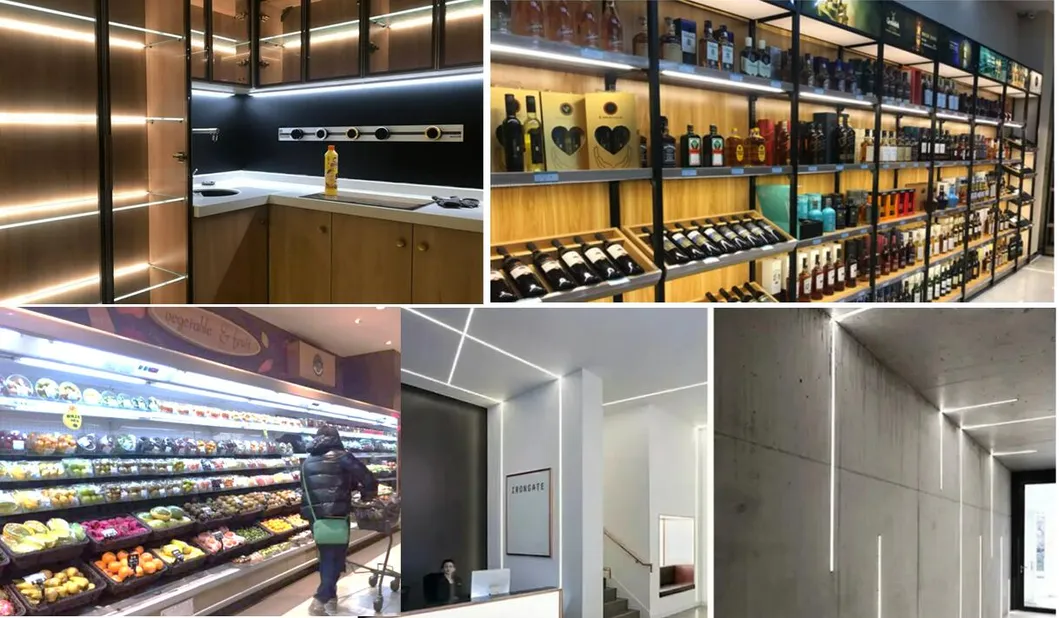

Applications
- Canopy, corridor, window and archway lighting
- Advertising boards & Signage backlighting
- Auditorium and stairway decoration
- Showcase and under-cabinet lighting
- Holiday, event, and exhibition displays
- Bar and freezer cabinet lighting
Frequently Asked Questions
What is the luminous efficiency of these LED rigid strips?
These strips offer a high efficiency of 130lm to 150lm per watt, providing excellent brightness with low power consumption.
Can I customize the length and LED quantity?
Yes, we support customization for LED quantity (30, 36, 60, 72, 120 LEDs/m) and specific PCB lengths to fit your project requirements.
Are the strips cuttable?
Yes, the 12V strips are cuttable every 3 LEDs, and the 24V strips are cuttable every 6 LEDs, allowing for precise adjustments during installation.
What is the Color Rendering Index (CRI) of this product?
The product features a CRI of Ra 90, ensuring high reliability and excellent color performance for display lighting.
What are the primary applications for these rigid bars?
They are widely used for jewelry displays, cabinet lighting, signage backlighting, and architectural decorative lighting.
What certifications do these lights hold?
Our LED rigid strips are fully certified with CE and RoHS standards, ensuring safety and quality.
