Product Description

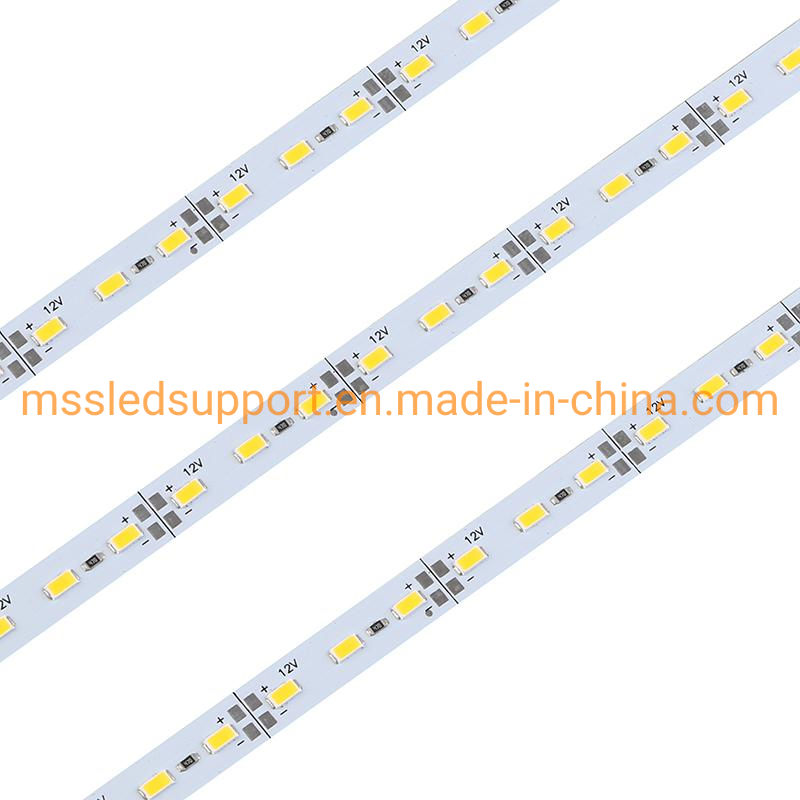

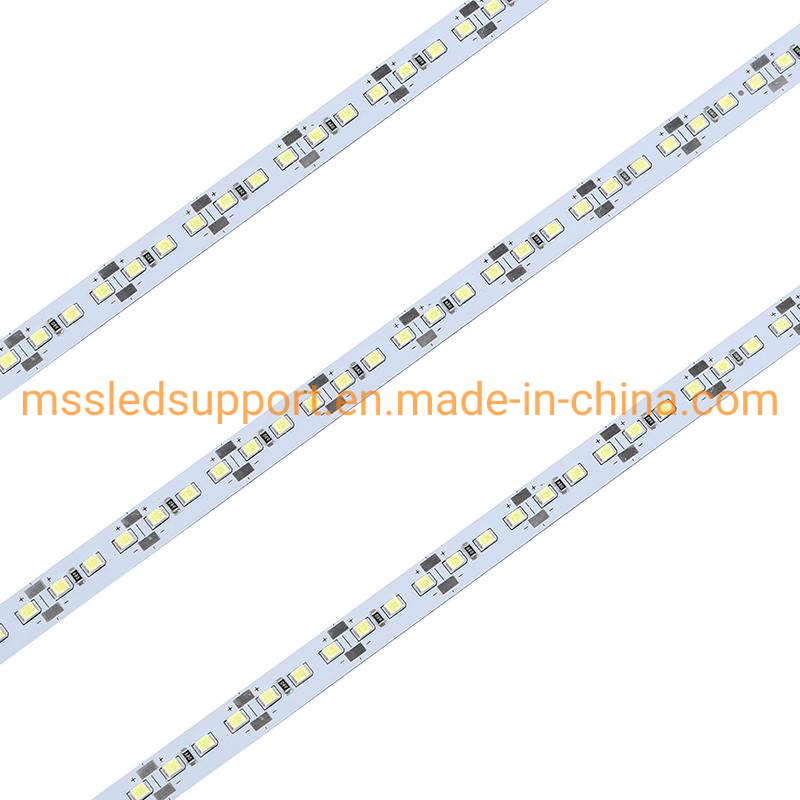

Ultra-bright 130lm/W 8mm 10mm 12mm PCB 12V 24V Led Rigid Strip Smd 2835 5630 5050 Led Rigid Light Bar Strips for Cabinet light.
Key Features

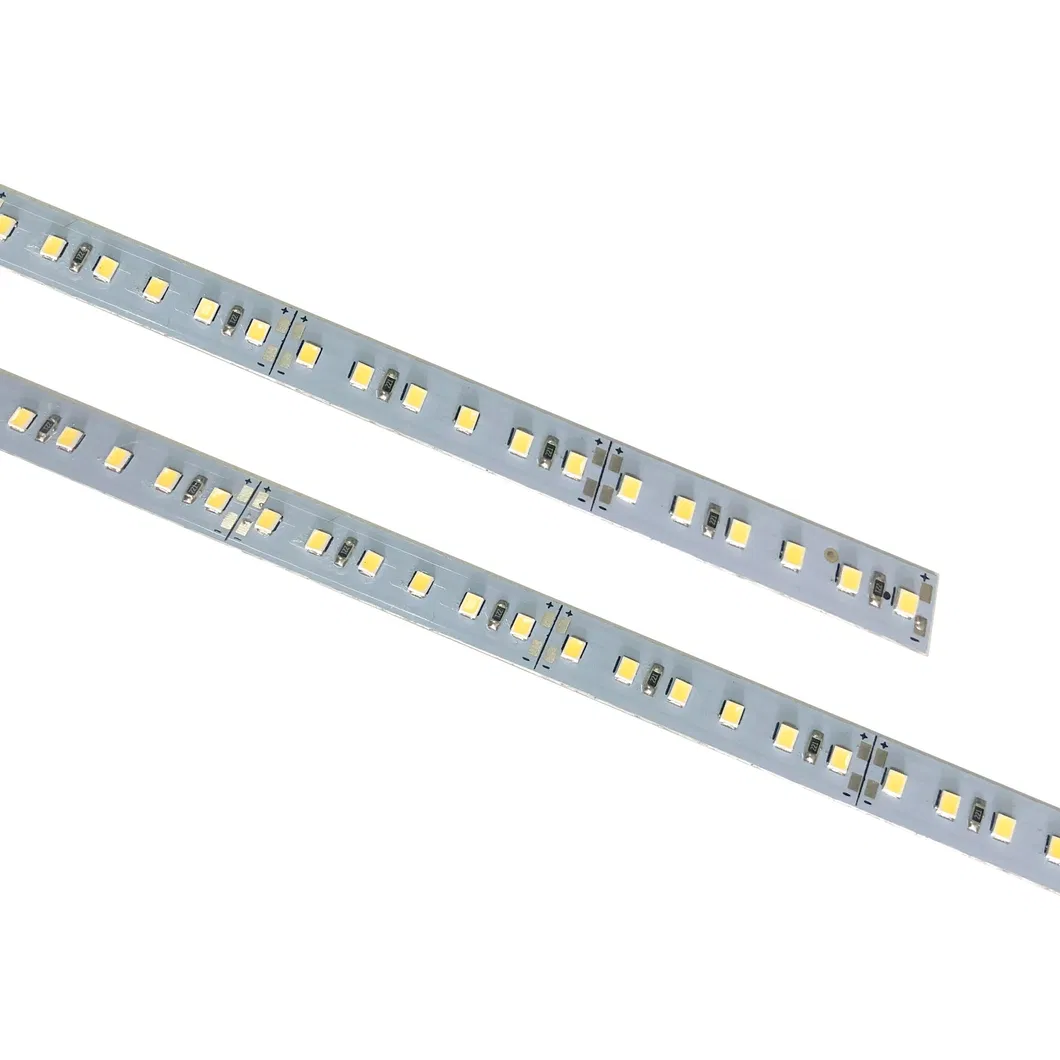

- Assembled with PCB hard boards, it is convenient to process and install for cabinet and wall etc.
- The LED rigid strip bar has 30 LEDs, 36 LEDs, 60 LEDs 72 LEDs, and 120 LEDs and support customized.
- DC 12V 3led or 24V 6led cuttable.
- Aluminium PCB ultra thick 1.2mm ~ 1.6mm.
- Ra 90, high reliability and excellent color performance.
- 130lm-150lm/watt, high brightness at same power consumption.
- Widely used for jewelry display lighting, reveal ark lighting, ambry lighting, chest lighting etc.
⚙️
Specifications
| Model | RGL100WA |
| LED Qty | 120leds/m |
| LED Type | Epistar |
| LED Color | White |
| Input Voltage | 12V DC / 24V DC |
| Watt | 10W/meter |
| Luminous Efficiency | 130-150lm/W |
| Dimension | W8*L990mm or custom size |
| Color Temperature | Warm white 2800-3200K / Natural white 4000-4500K / Cool white 6000-6500K |
| Light Efficiency | >85% |
| Beam Angle | 120° |
| Working Temperature | -40°C ~ +50°C |
| Life span | 50000hrs |
| Certificate | CE, RoHS |
| IP Grade | IP33 |
| PCB Color | Copper / White / Black |
| Installation way | Screw or Back adhesive |
🌈
Visual Showcase

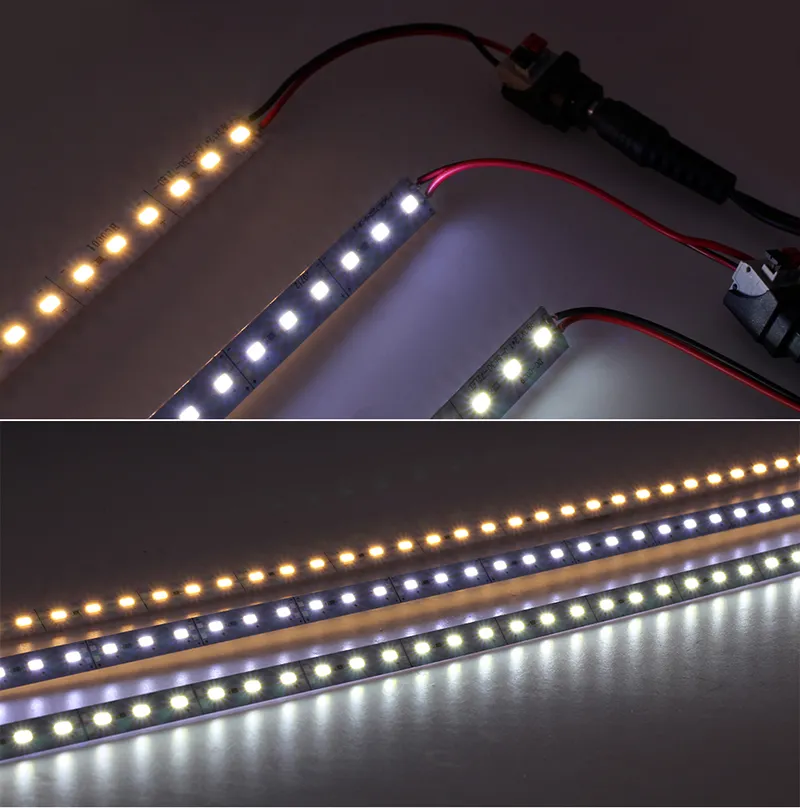

Different CCT Options:

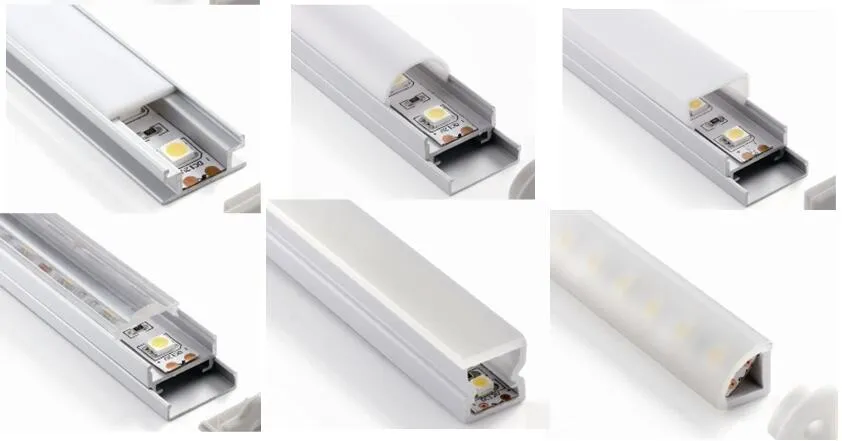

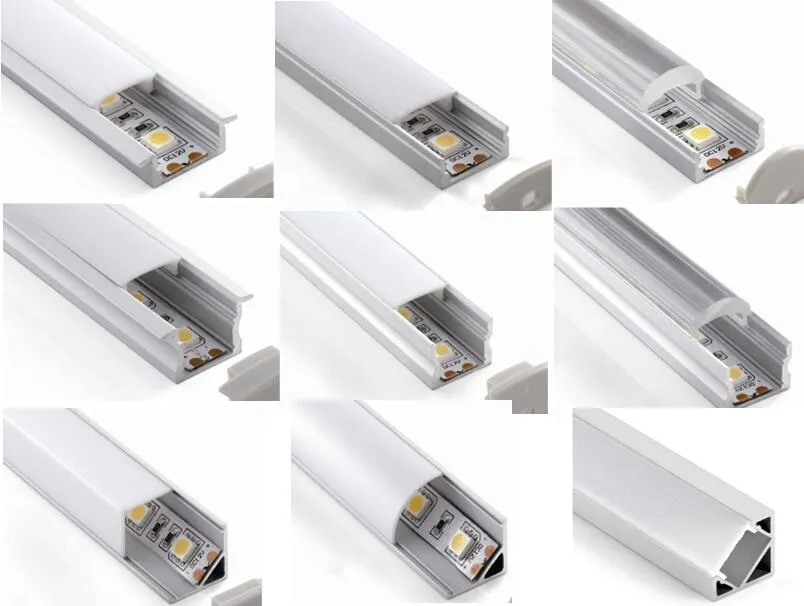

Optional Aluminium Profiles:

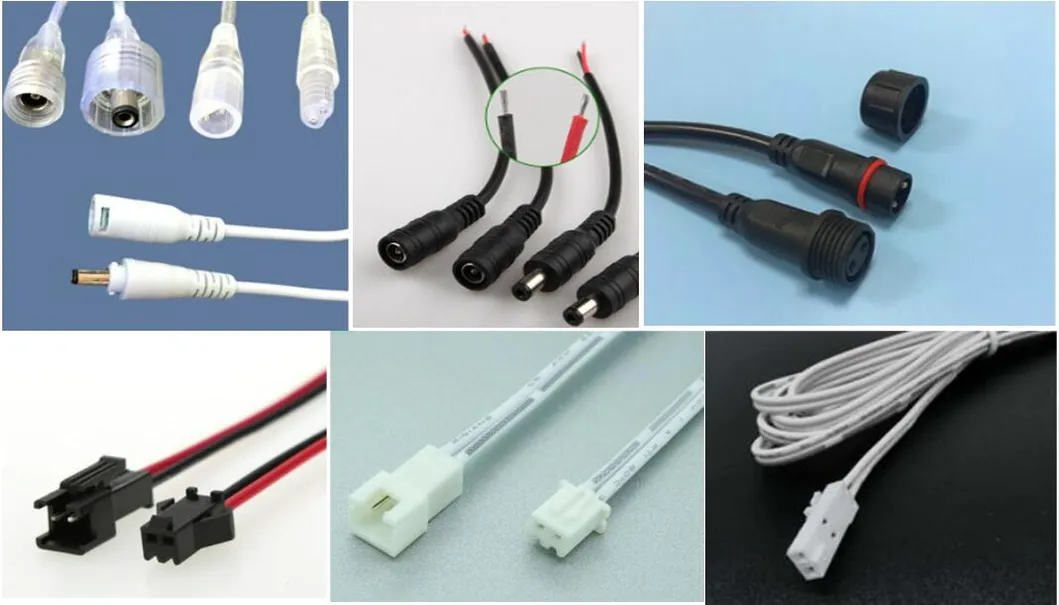

Connector Options:
Certificates:
🏠

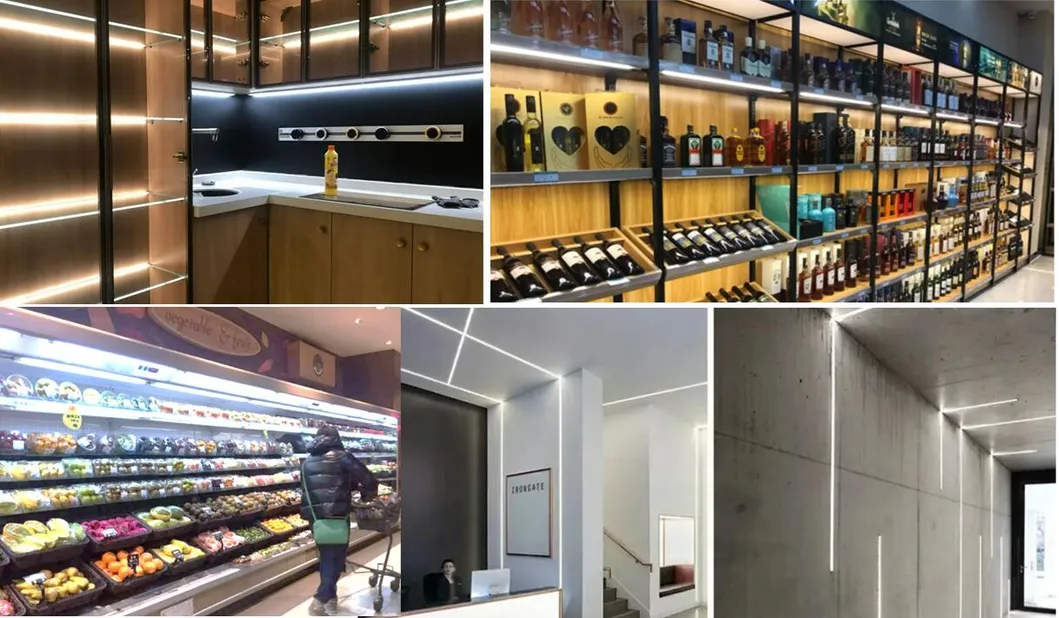

Applications
- Architectural lights for canopy, corridor, window and archway
- Advertising board lighting, Backlight or edge lighting for signage
- Auditorium walkway lighting
- Stairway lighting & decoration
- Showcase, under-cabinet lighting
- Decorative lights for holiday, event, show, exhibition
- Bar and freezer cabinets
- Cove lighting
❓
Frequently Asked Questions
What is the main advantage of using a rigid LED strip over a flexible one?
Rigid strips are built on a solid Aluminium PCB, providing better heat dissipation and structural stability, making them ideal for straight-line installations like cabinets and showcases.

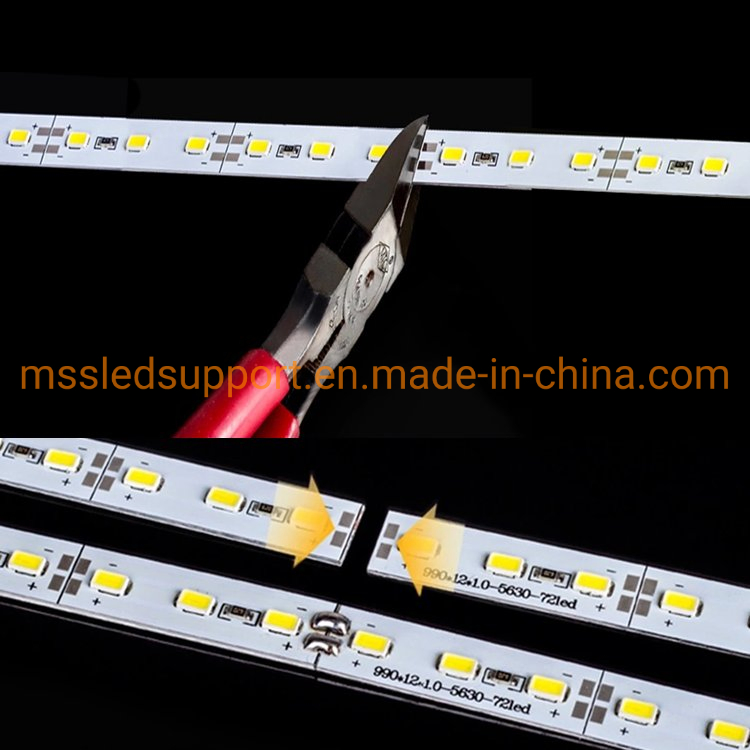

Can these LED light bars be cut to a specific length?
Yes, the strips are cuttable every 25mm (3 LEDs for 12V or 6 LEDs for 24V), allowing for precise customization during installation.
What does CRI 90 mean for my display?
A Color Rendering Index (CRI) of 90 means the light accurately represents the true colors of objects, which is essential for jewelry displays and high-end retail lighting.
Is the installation process difficult?
No, these strips support multiple installation modes, including high-strength back-tape stick-on or secure screw fixation, and can be used with optional aluminum profiles for a professional finish.
What color temperatures are available?
We offer a wide range including Warm White (2800K-3200K), Natural White (4000K-4500K), and Cool White (6000K-6500K) to suit different lighting environments.
Are these LED strips waterproof?
This specific model has an IP33 rating, which means it is designed for indoor use and is protected against solid objects but not waterproof.
