Basic Info.
Model NO.FDL115-SP
Light SourceLED
Lamp TypeWall Lamp
Emitting ColorWarm White
MaterialAluminum
AppliancesRoom
Lamp Power3W
WaterproofNot Waterproof (IP22)
CertificationCE, RoHS, EMC
SizeSurface: 55*55mm / Hole: 45mm
InstallationRecessed
ApplicationOutdoor/Stair/Wall
OriginChina
HS Code9405409000
Product Description
Recessed DC12V 1W Mini Ceiling Light Downlight Spotlight
Model # FDL115-SP
| Model |
Wattage |
Voltage |
LED Color |
Lumen |
Size (mm) |
| FDL115-SP |
1W |
DC 12V |
3000K/4000K/6000K/Blue/Green/Red |
95 |
20*25mm, 14mm cut |
⚡
Energy-saving: Only 1W consumption.
📏
Small size: Easy to install anywhere.
🎨
Color Variety: Multiple LED colors available.
Perfect for home, hotel stair, wall, ceiling, cabinet, showcase, and display decoration.
Detailed Images

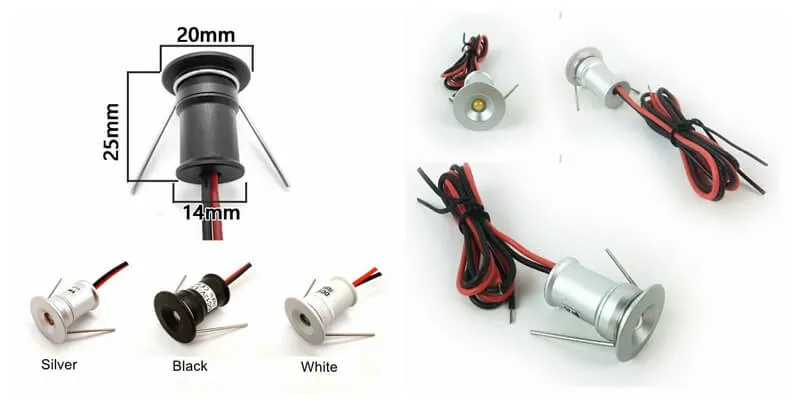

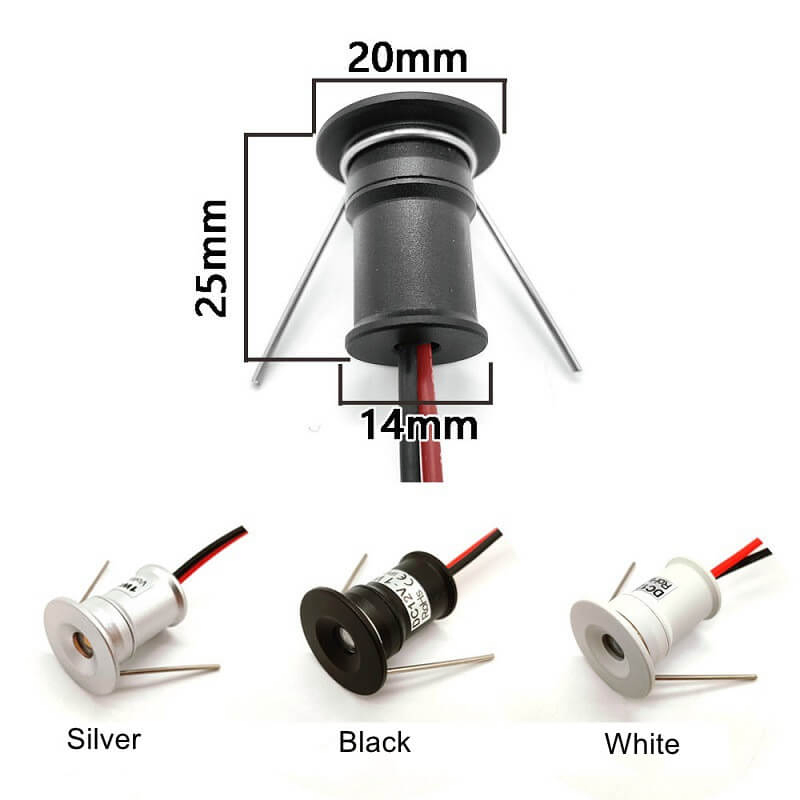

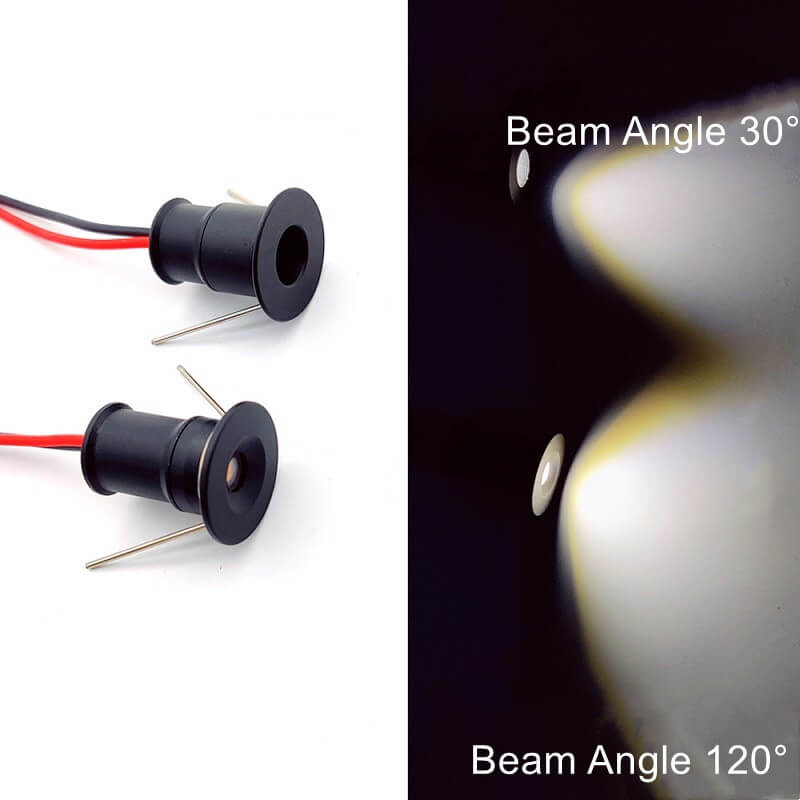

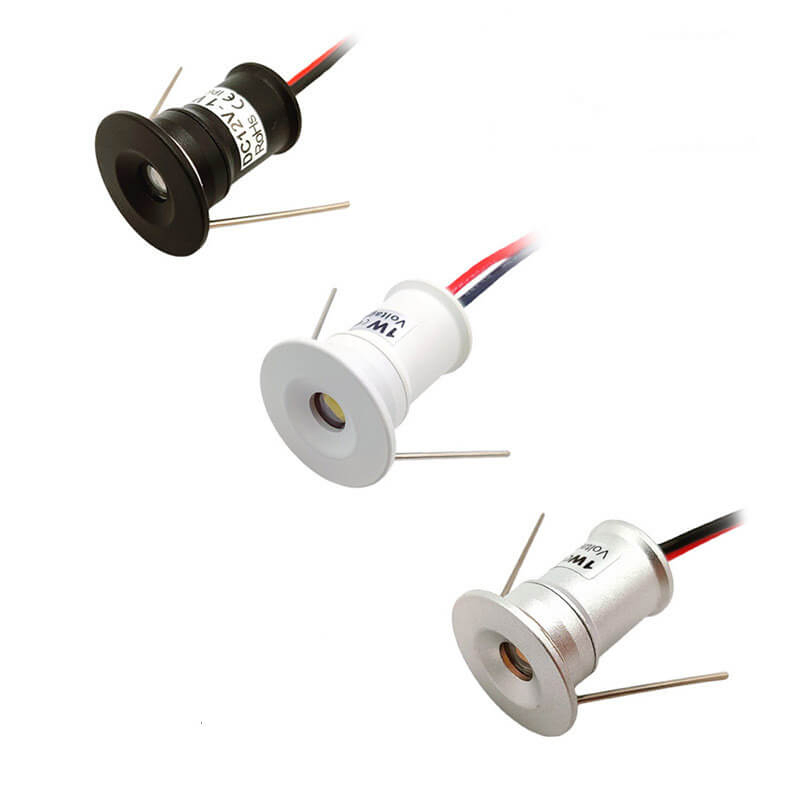

Three housing colors available: White / Black / Silver. Two beam angles: 30° or 120°.
⚠️ Installation Note:
Recess 15mm hole, connect to 12V DC. Using 110V or 220V voltage directly will damage the lamps and is extremely dangerous.

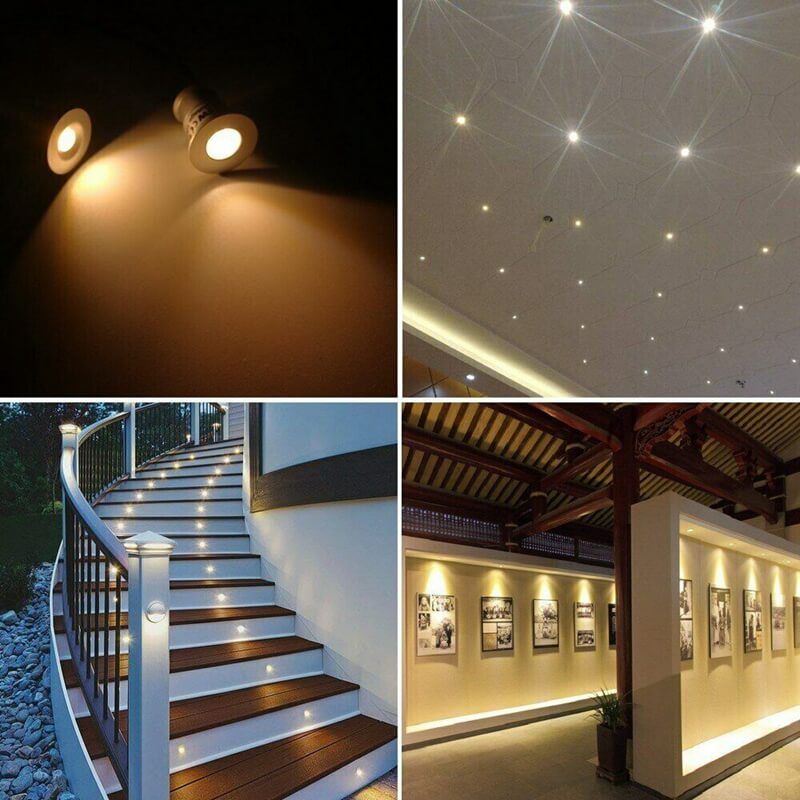

Application Showcase
Ideal for indoor usages, such as hotel, bar, and home stairs.
Frequently Asked Questions
Q1: Can I connect this light directly to my home wall outlet?
A1: No. This light requires a DC 12V power supply. Connecting it directly to 110V or 220V will damage the LED and pose a safety risk.
Q2: Is this light waterproof for outdoor use?
A2: The light is rated IP22, which is not waterproof. It is best suited for indoor applications or covered outdoor areas where it won't be exposed to moisture.
Q3: What are the available beam angles for this model?
A3: You can choose between a narrow 30-degree beam for focused lighting or a wide 120-degree beam for general illumination.
Q4: What colors are available for the light fixture housing?
A4: The housing is available in three stylish finishes: White, Black, and Silver.
Q5: What is the power consumption of this mini downlight?
A5: It is highly energy-efficient, consuming only 1W of power while providing bright, clear light.
Q6: What is the required hole size for recessed installation?
A6: For the FDL115-SP model, a cutout hole of approximately 14mm to 15mm is required for a secure fit.
