8W 12W Round LED Moisture Proof Ceiling Lamp
Modern LED bulkhead light featuring IP65 waterproof rating, perfect for bathrooms, outdoor gardens, yards, and industrial environments. High-performance lighting with energy-efficient LED technology.
- Energy efficient LED
- IP65 Weatherproof Rating
- IK10 Vandal Proof

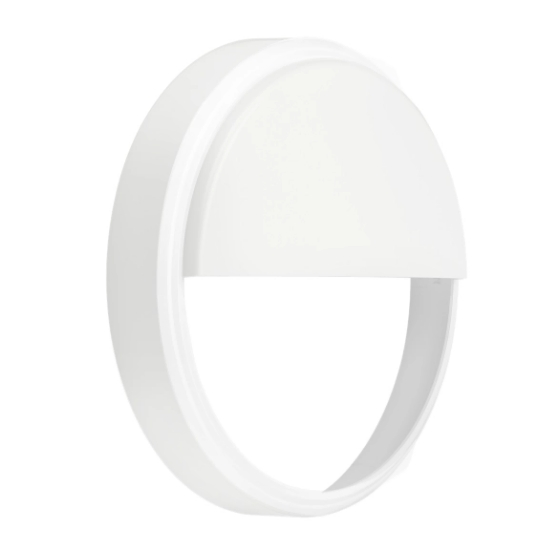

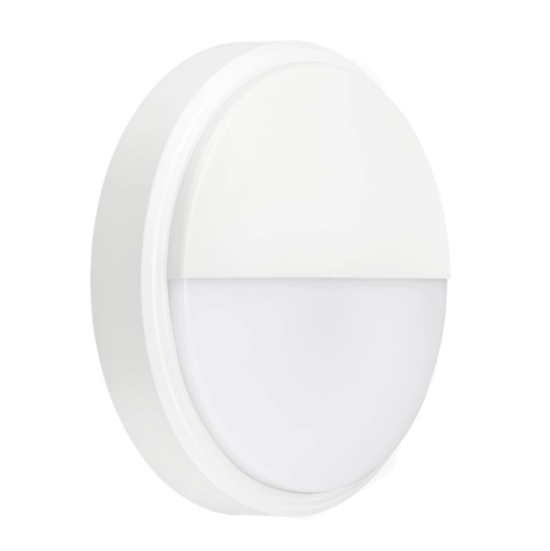

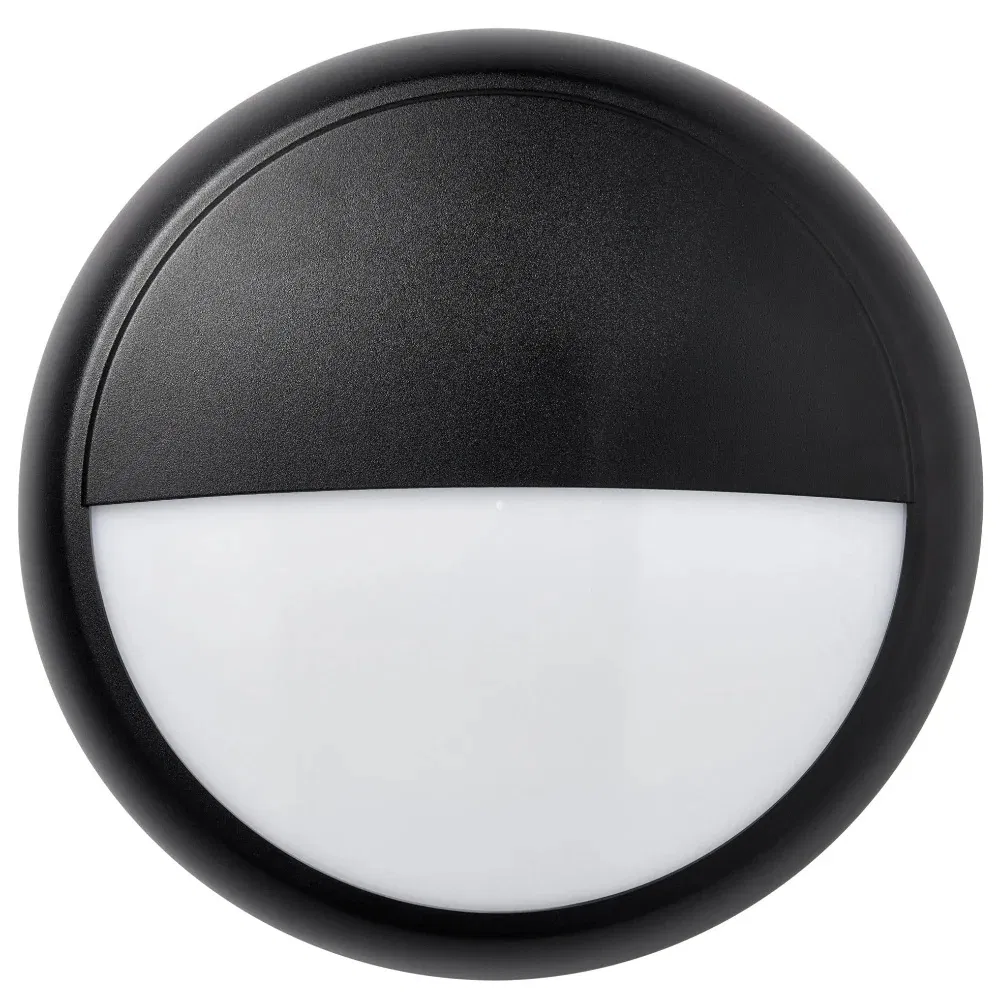

- Eyelid Trim Option
- Tri-CCT Selectable
Technical Specifications
Mechanical
- Adjustability: Fixed
- Material: Polycarbonate Body & Diffuser
- Fitting Colour: Black
- IK Rating: IK10
- Installation: Wall or Ceiling
- IP Rating: IP65
Electrical
- Electrical Rating: Class II
- Input Voltage: 230Vac / 50 Hz
- Input Current: 0.07 A
- System Wattage: 8W / 12W
- Working Temp: -20 to 45 °C
- Switch Type: Inline
Lamp & Performance
- CCT Config: TRI-CCT Selectable
- CRI: >80
- Efficiency: 100 lm/W
- LED Lifetime: >54,000 hrs
Color Temperature & Output
- Warm White (3000K): 1125 lm | Eyelid: 670 lm
- Cool White (4000K): 1170 lm | Eyelid: 700 lm
- DayLight (5700K): 1150 lm | Eyelid: 685 lm
Product Visuals
1) Full and half full lighting performance:

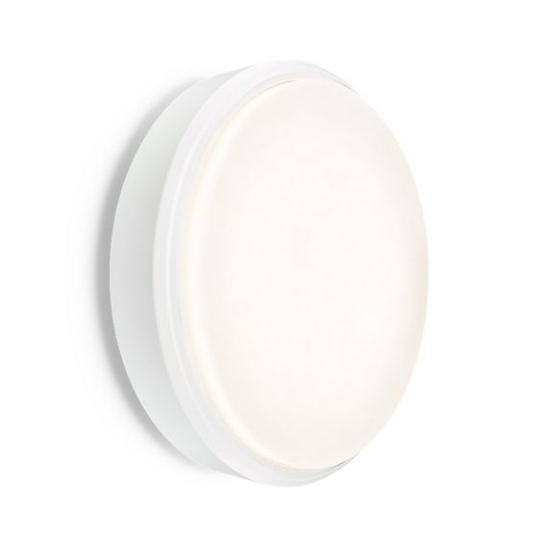

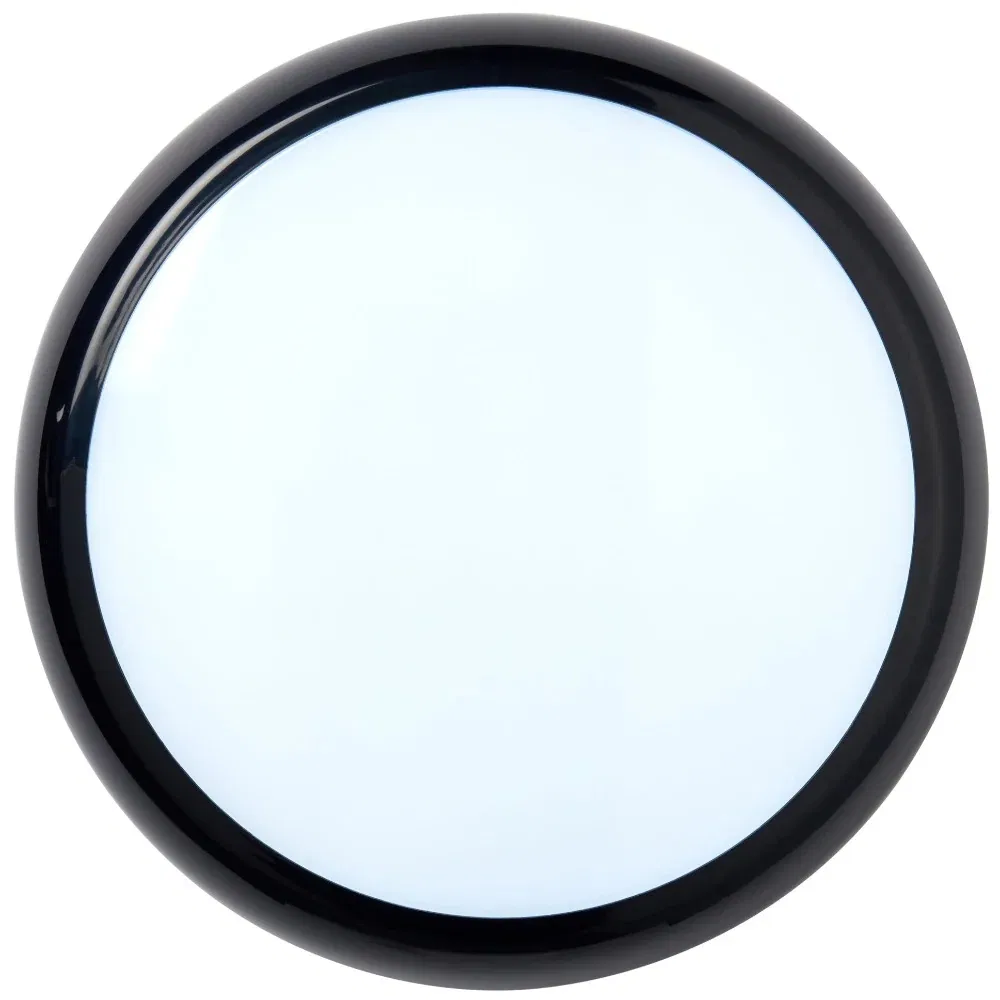

2) Front View Display:

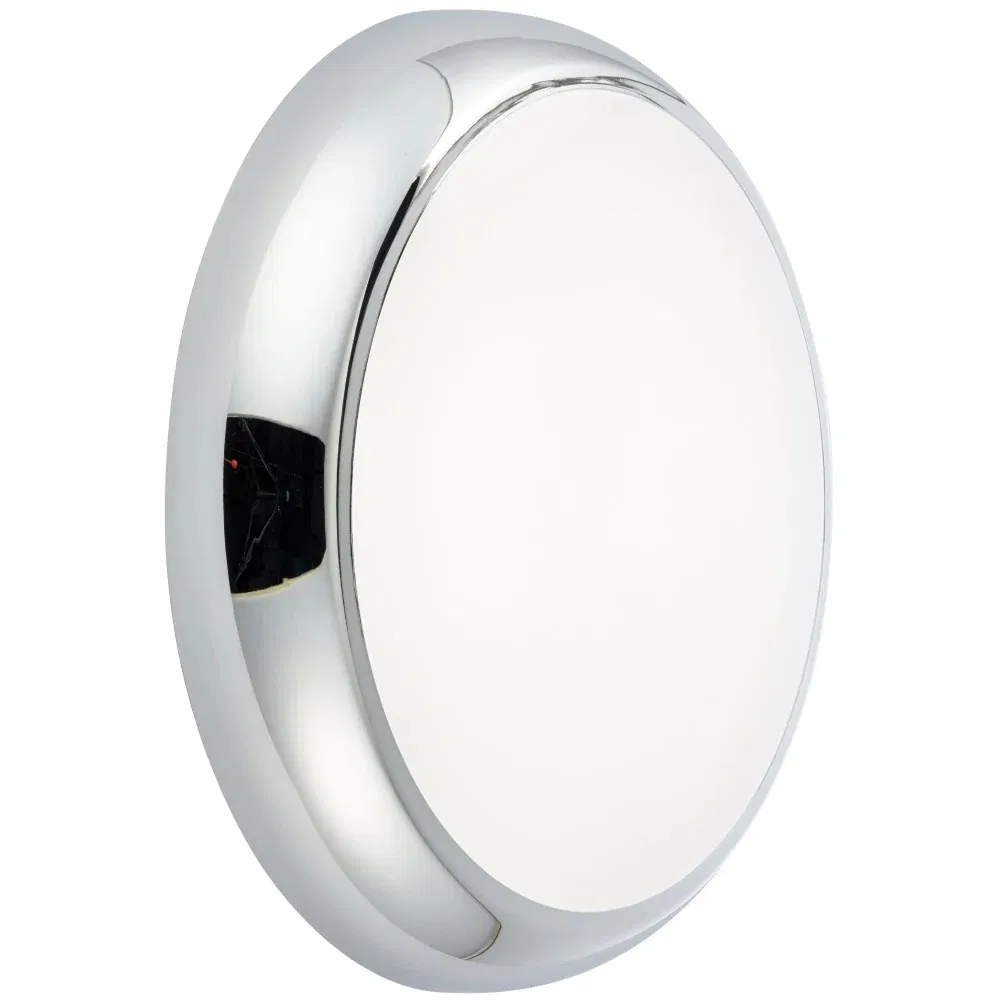

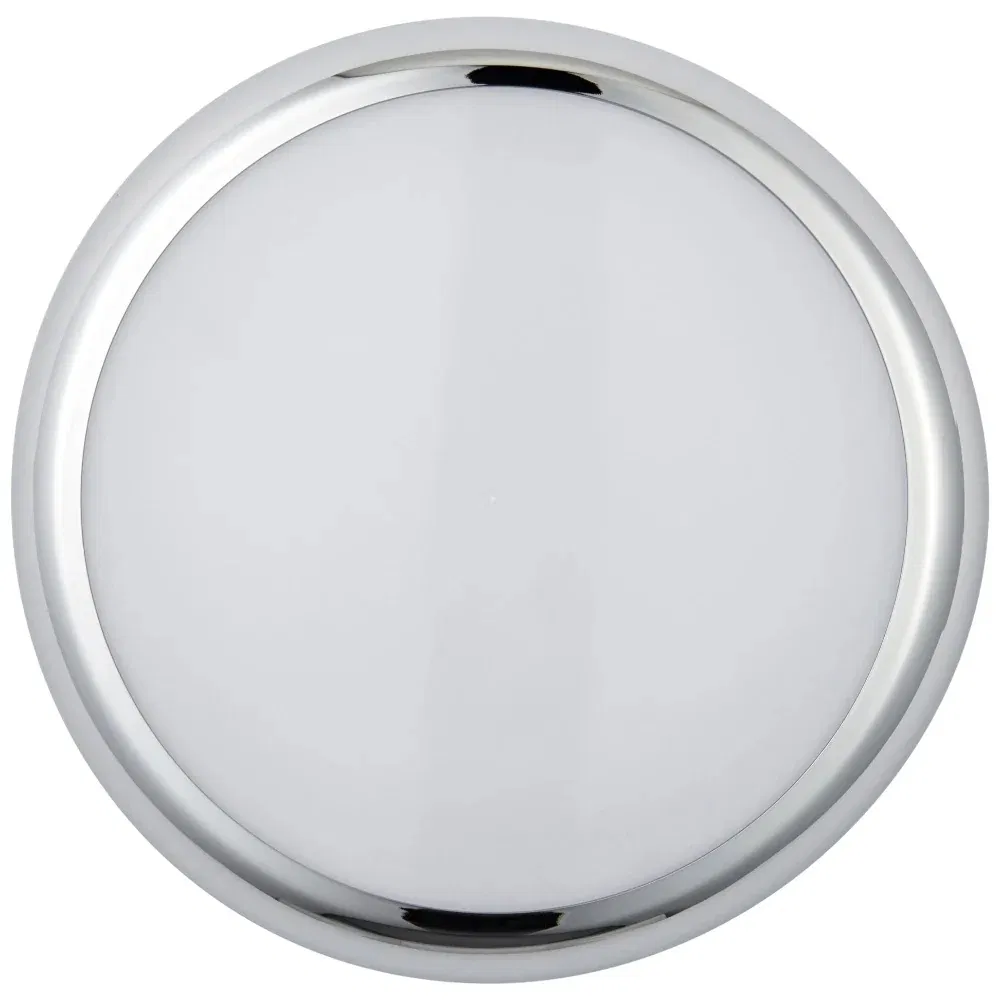

3) Bright Face Performance:

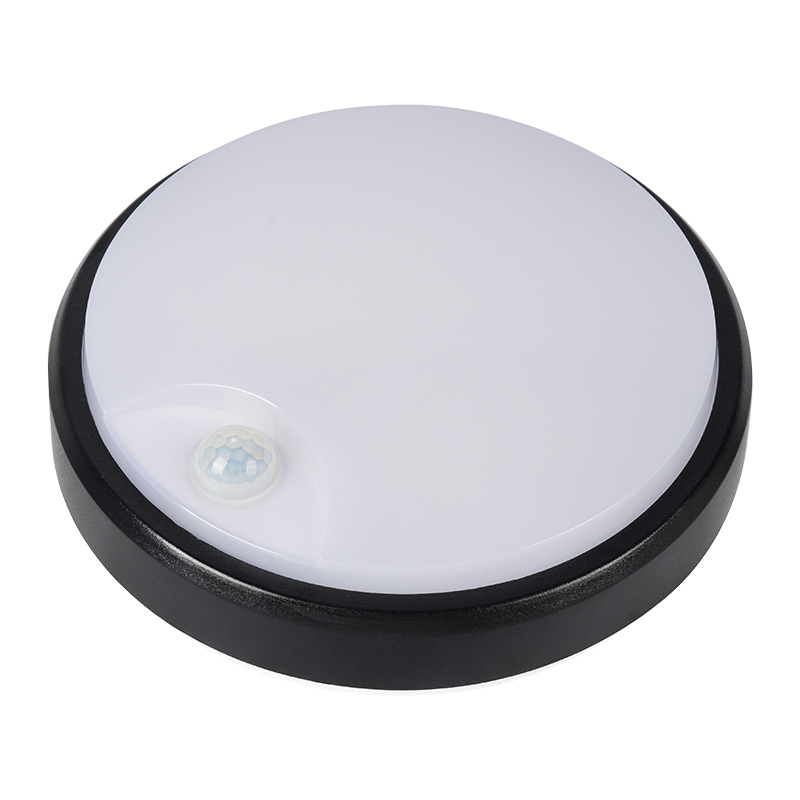

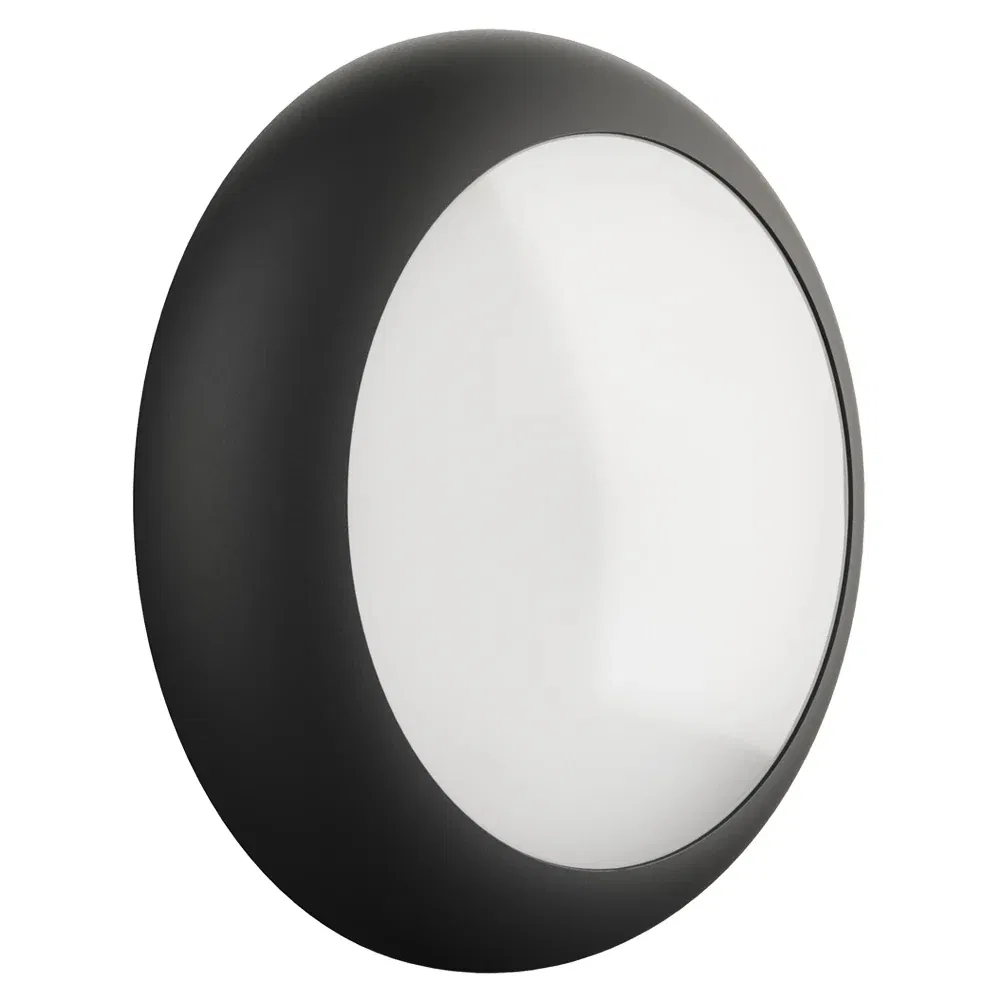

4) White and Black Colour Options:

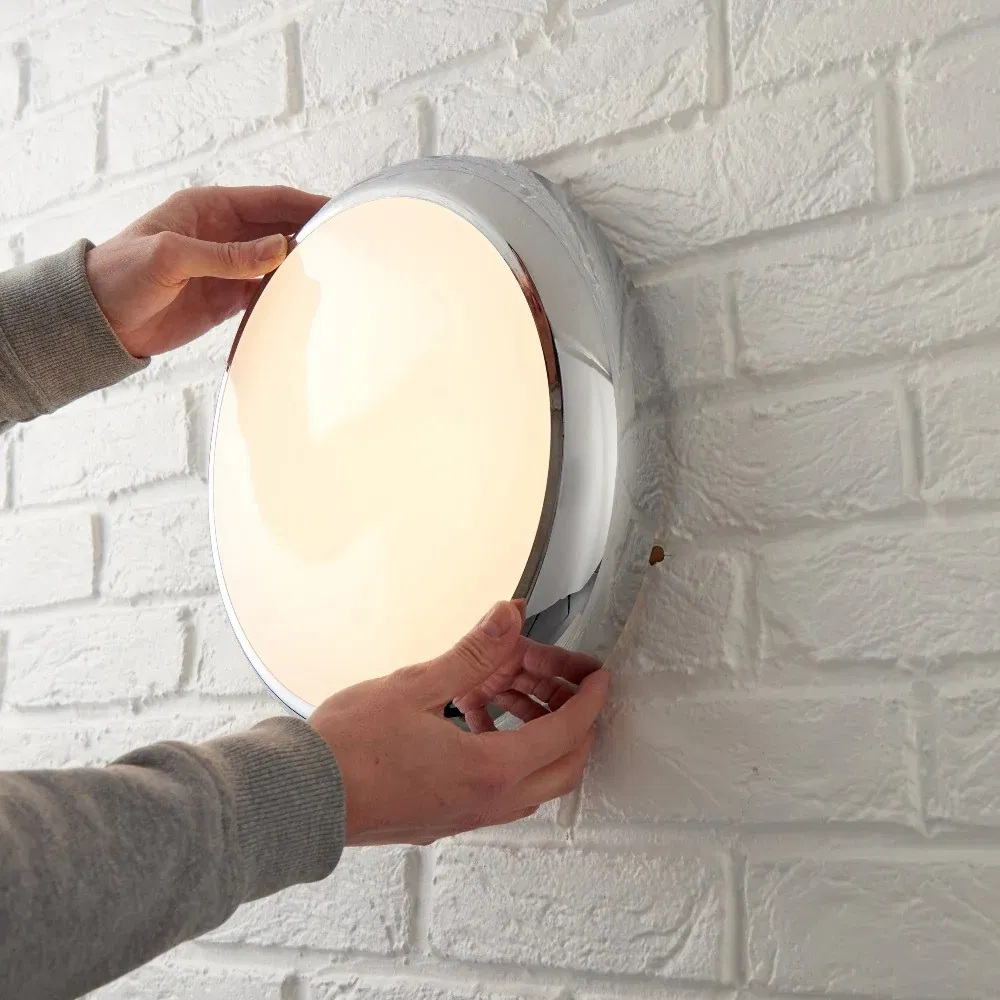

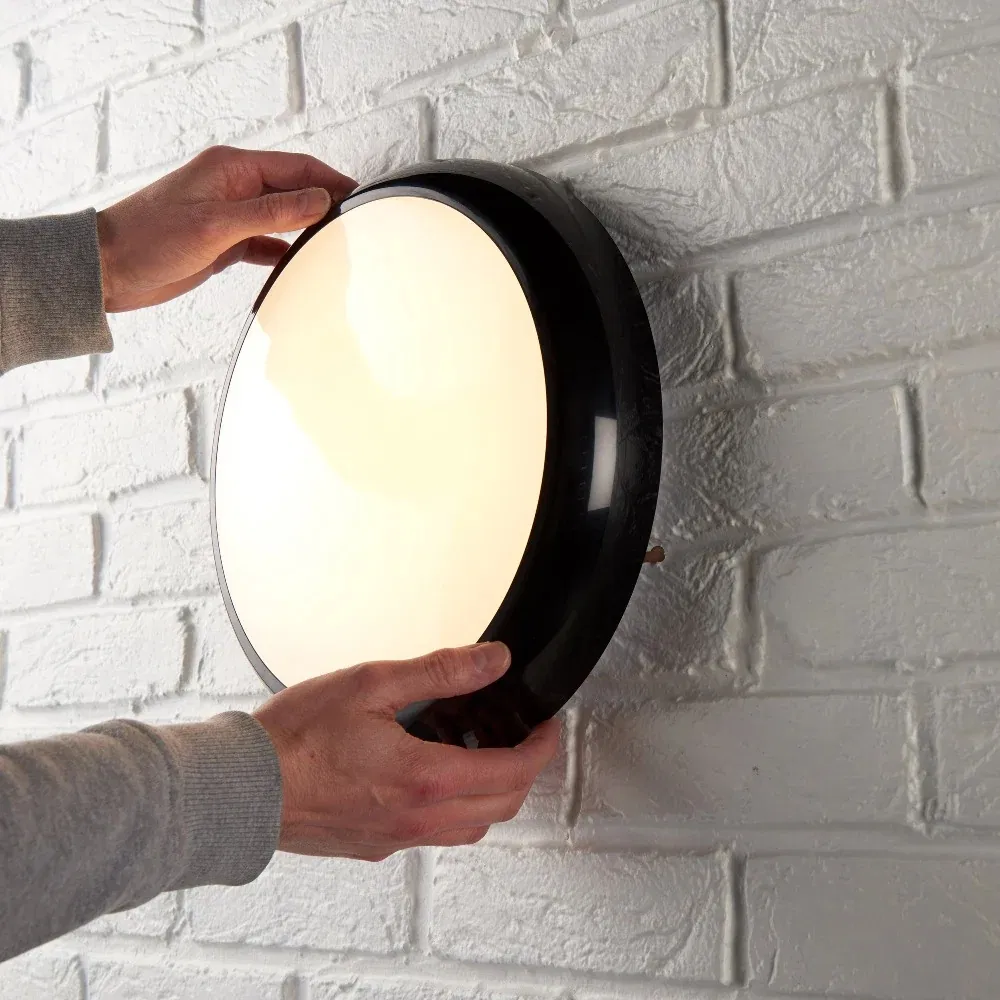

5) Installation Example (Wall Mount):
6) Internal Structure: Driver and LED Board:

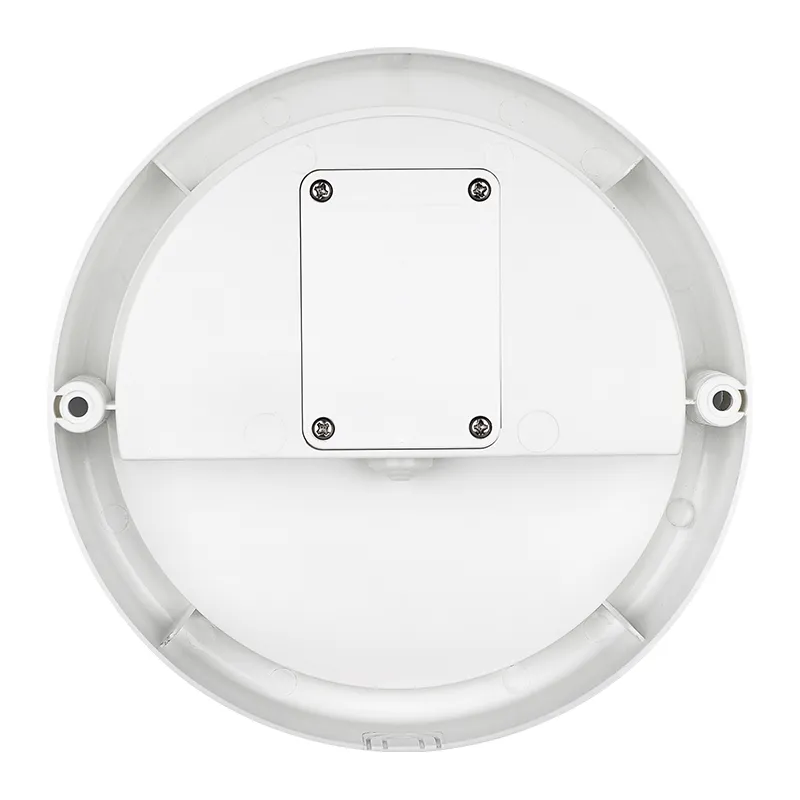

7) Back and Internal Details:

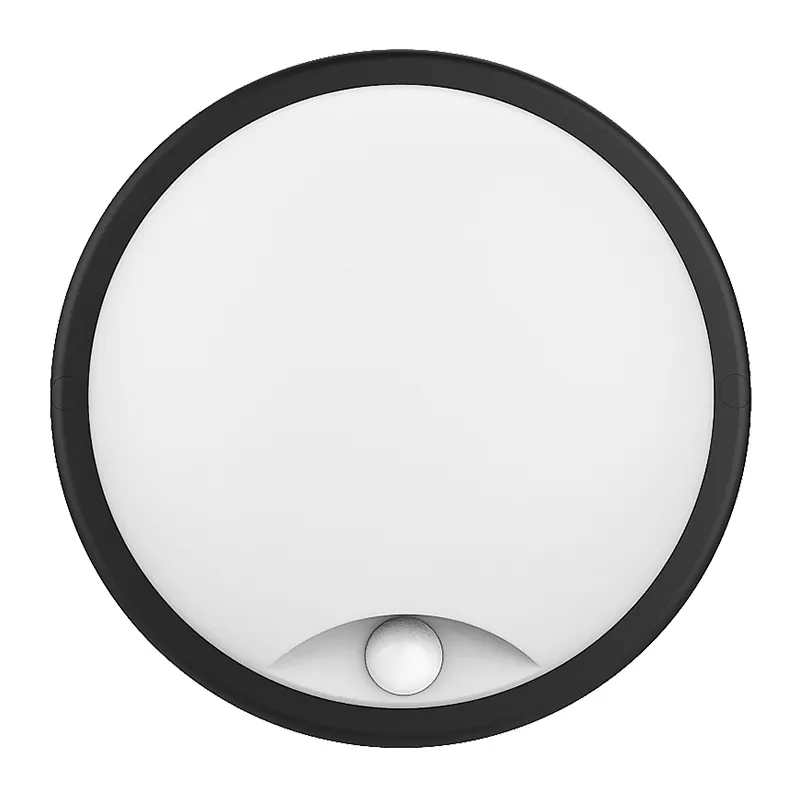

8) Real Life Product Photos:

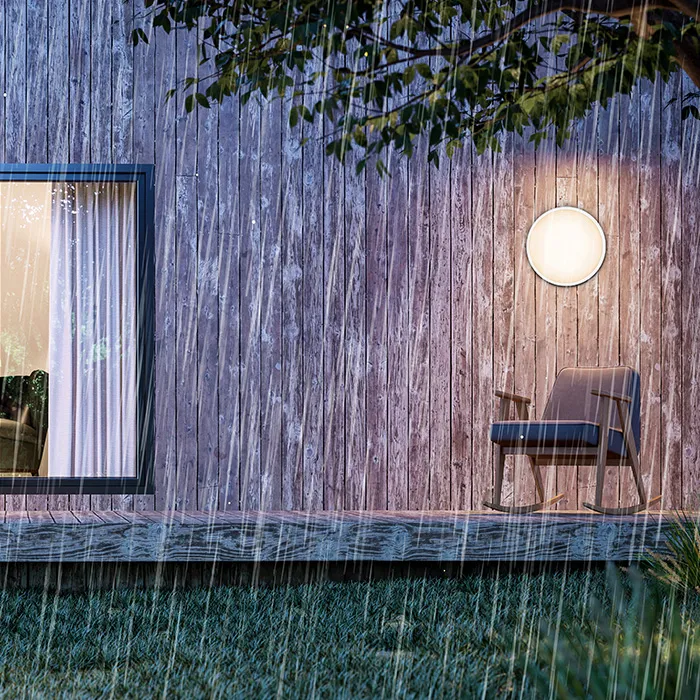

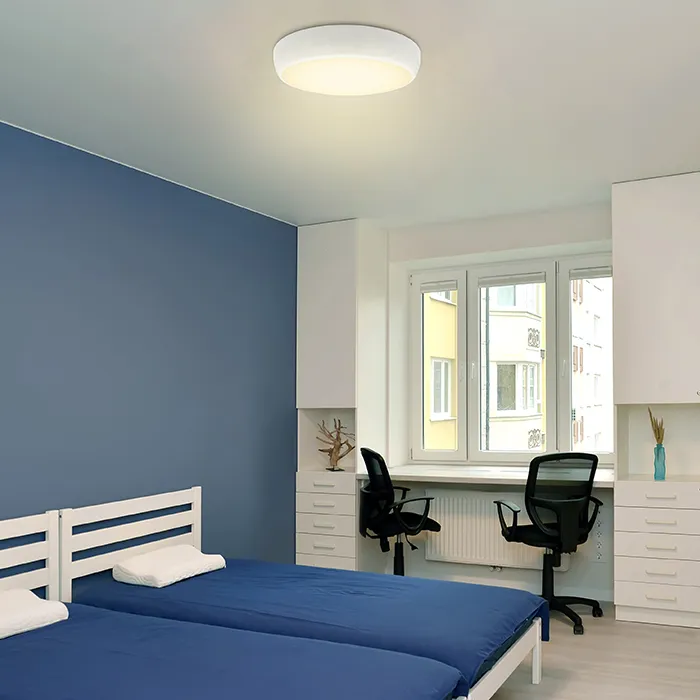

9) Application Scenarios:
Key Features & Materials
- Premium Construction: PC or ABS material body with high impact resistance. Non-deformable structure suitable for high-vibration environments.
- Advanced Diffuser: Opal PC diffuser for soft, uniform lighting.
- Durable Core: White aluminum LED base (0.45mm thickness) for optimal heat dissipation.
- High Protection: IP66 rating with a stable water-tight gasket. Waterproof, explosion-proof, and dustproof.
- Smart Options: Available with 3CCT sensor and emergency kitting.
- Quality Components: Equipped with high-quality LED drivers and SMD2835 chips.
Wide Applications
Ideal for indoor and outdoor areas with high IP requirements, including: Food industry chemical plants, heavy mining, oil & petrochemical industries, offshore industry, swimming pools, dusty/humid environments, washing houses, breweries, warehouses, tunnels, ships, railway platforms, parking lots, and refrigeratory storage.
Power & Model Selection
| Item No. |
Power |
Lumens |
PF |
IP Grade |
Sensor |
IK |
3CCT |
CRI |
Warranty |
Size |
| BL1-12 |
8W |
5501LM |
>0.5 |
IP65 |
Microwave |
IK10 |
3000K/4000K/5700K |
>80 |
3 years |
Φ176*55mm |
| BL2-18 |
12W |
8501LM |
>0.5 |
IP65 |
Microwave |
IK10 |
3000K/4000K/5700K |
>80 |
3 years |
Φ221*55mm |
Frequently Asked Questions
What is the IP65 rating of this lamp?
The IP65 rating means the lamp is completely dust-tight and protected against water jets from any angle, making it ideal for bathrooms, gardens, and industrial washing areas.
How does the Tri-CCT selectable feature work?
The lamp allows you to select between three color temperatures (3000K Warm White, 4000K Cool White, and 5700K Daylight) using an internal switch to match your environment's needs.
Is the housing resistant to physical damage?
Yes, the lamp features an IK10 vandal-proof rating, which is the highest level of protection against external mechanical impacts.
Can this light be mounted on either the wall or ceiling?
Absolutely. The light is designed for versatile installation and can be securely fixed to both vertical walls and horizontal ceilings.
What is the expected lifespan of the LEDs?
The LEDs are rated for a lifetime of over 54,000 hours, ensuring long-term reliability and reduced maintenance costs.
Does the lamp come with a warranty?
Yes, this product comes with a standard 3-year warranty covering material and manufacturing defects.
