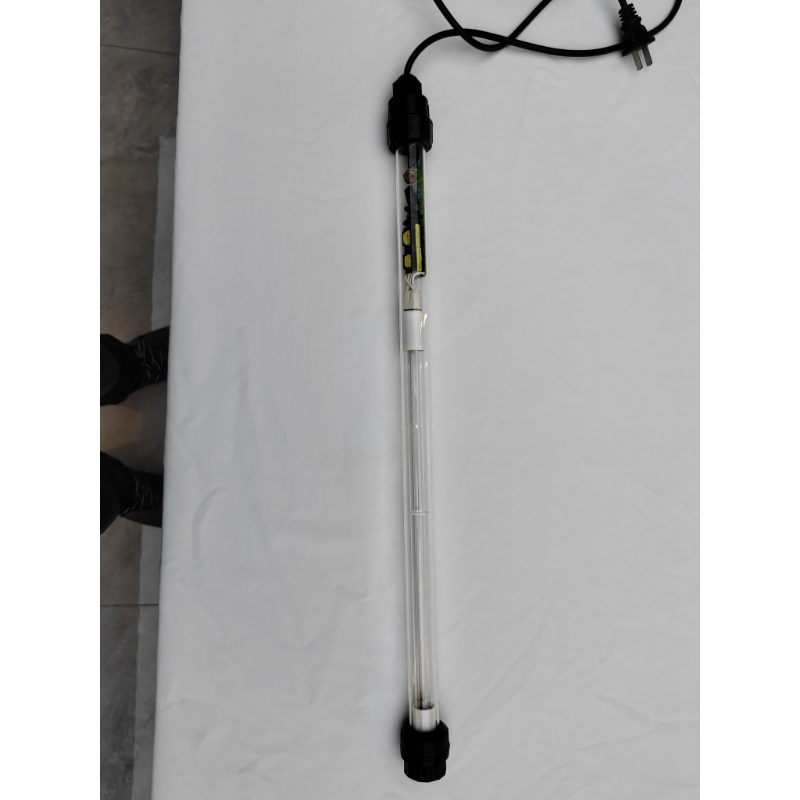

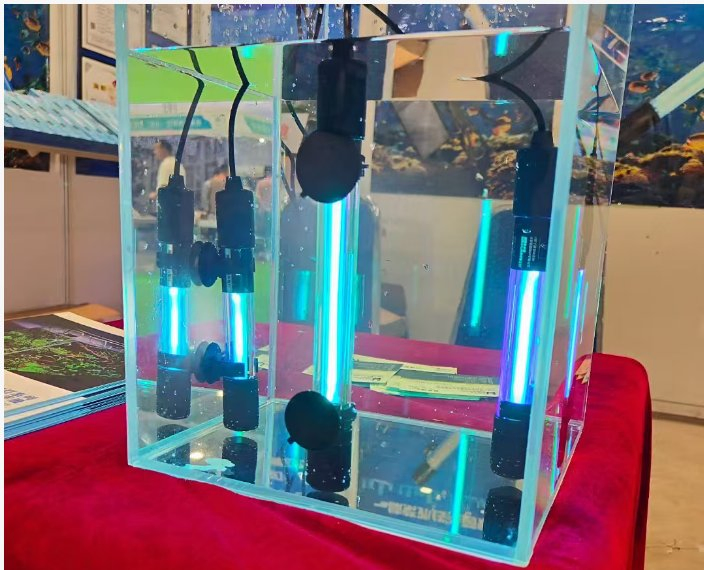

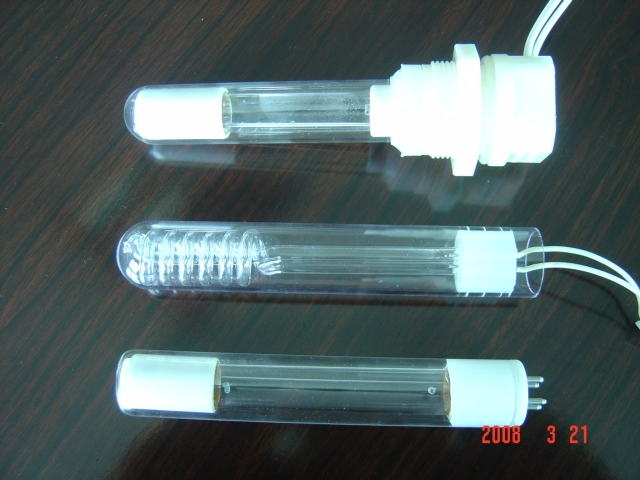

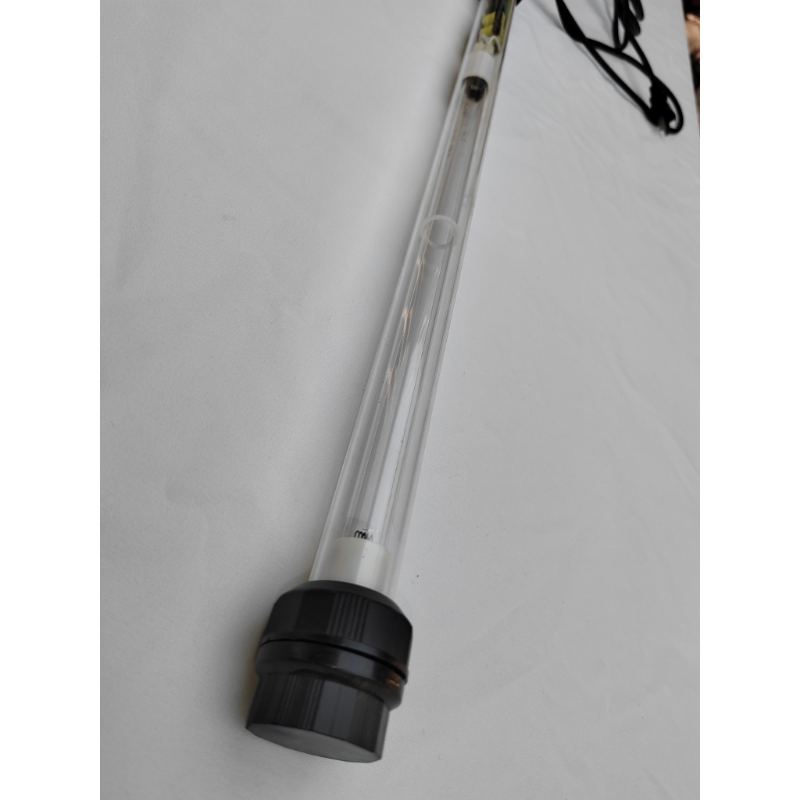

The Submersible UV disinfection lamp features high-quality quartz UVC germicidal lamp tubes, UV ballasts, and quartz sleeves with waterproof joints. It boasts high UV transmittance and is moisture, water, and dust-proof. Operates in low temperatures (-40°C to 60°C) and underwater. Simple structure allows easy tube replacement, ensuring low maintenance costs.





| Specification | Diameter(mm) | Cap | Length(mm) | Current(A) | Voltage(V) | Power(W) | UV Intensity | Lifespan(h) |
|---|---|---|---|---|---|---|---|---|
| UVC-G4T5 | 16 | G5 | 135 | 170 | 28 | 4 | >4000 | 9000 |
| UVC-G6T5 | 16 | G5 | 212 | 160 | 42 | 6 | >5000 | 9000 |
| UVC-G8T5 | 16 | G5 | 288 | 145 | 56 | 8 | >6000 | 9000 |
| UVC-G10T5 | 16 | G13 | 330 | 220 | 52 | 10 | >7000 | 9000 |
| UVC-G30T5 | 16 | G13 | 894 | 410 | 90 | 36 | >12000 | 9000 |
| UVC-G150T5 | 16 | G13 | 1554 | 825 | 210 | 150 | >13000 | 9000 |
