Basic Information
Specification

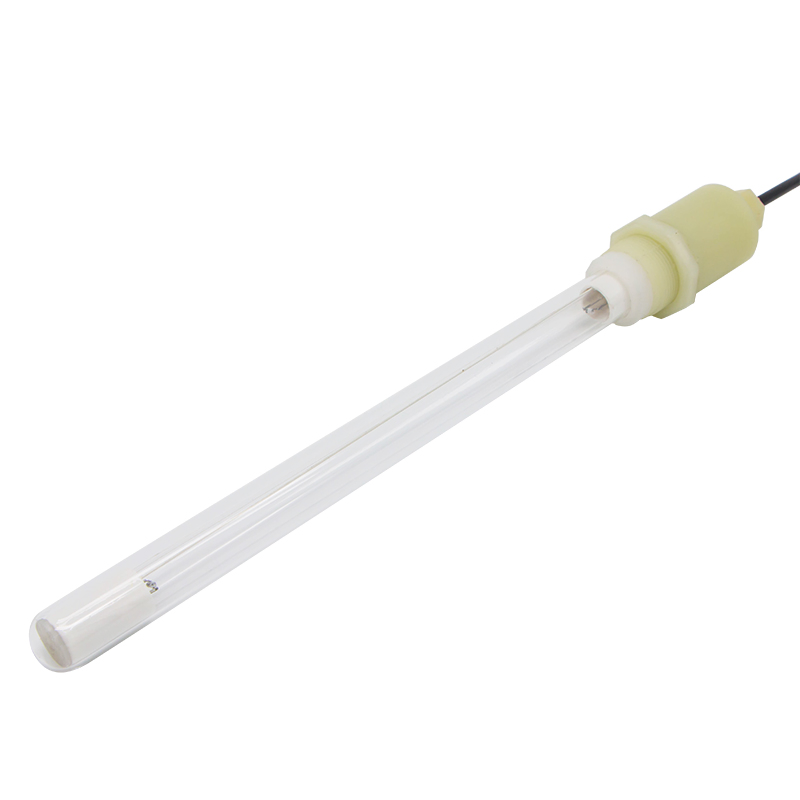

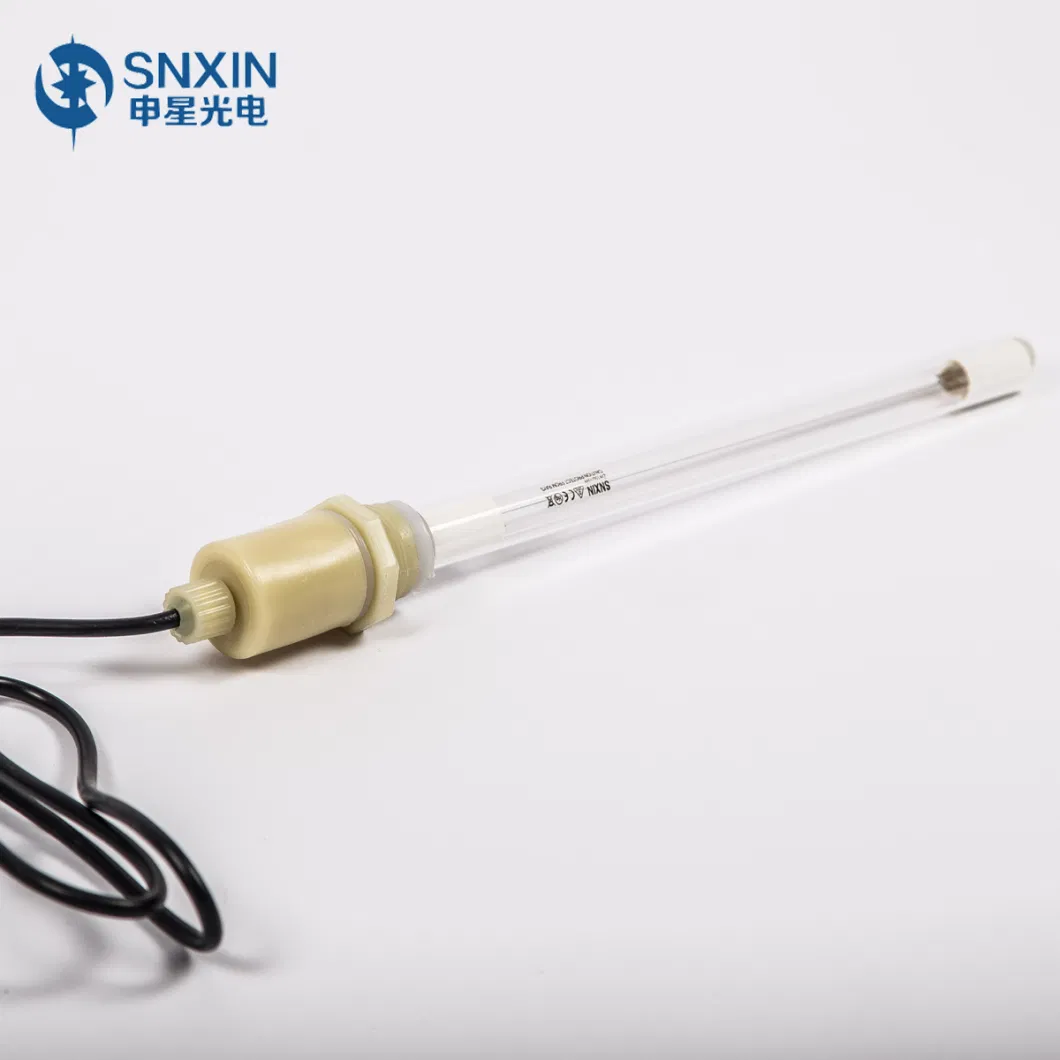

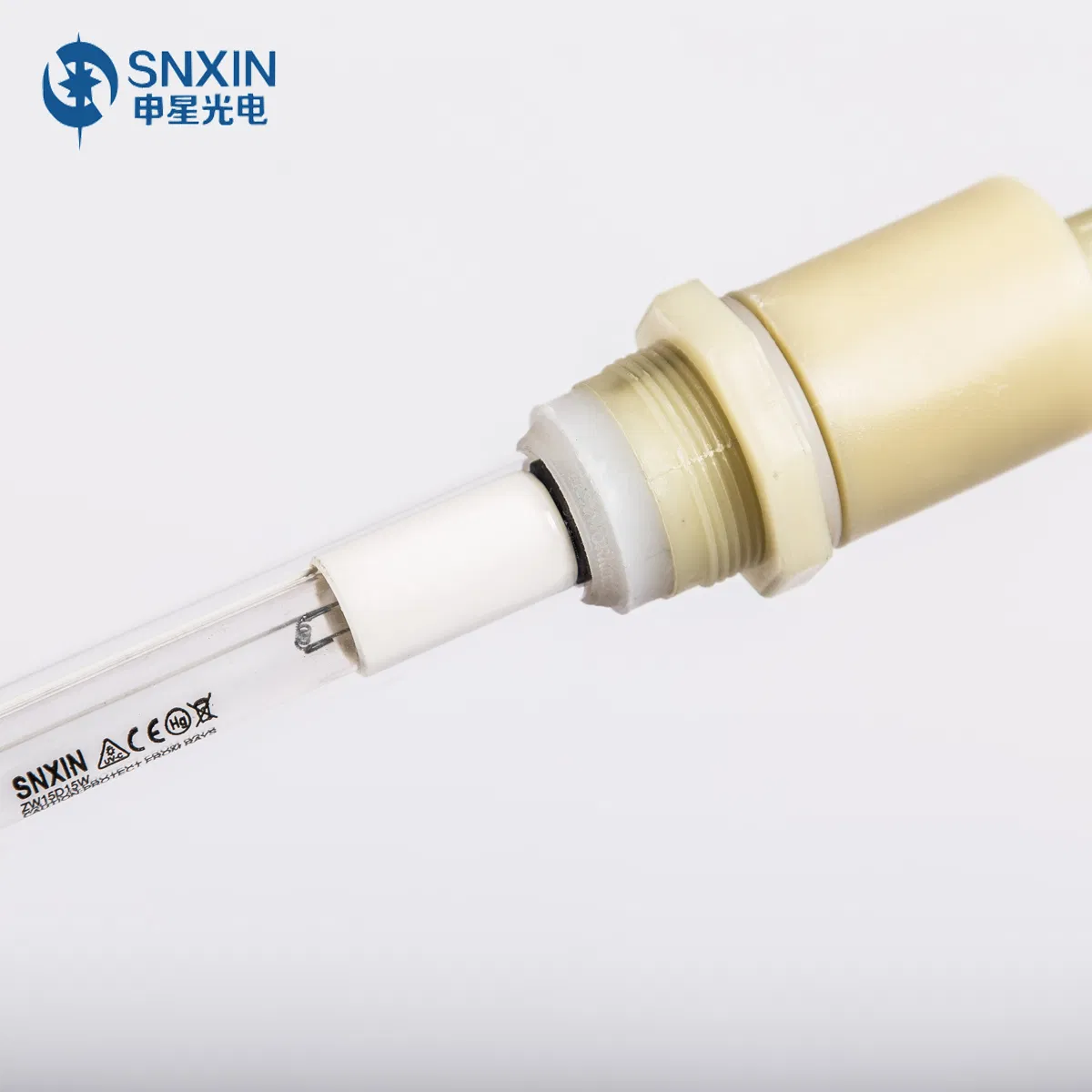

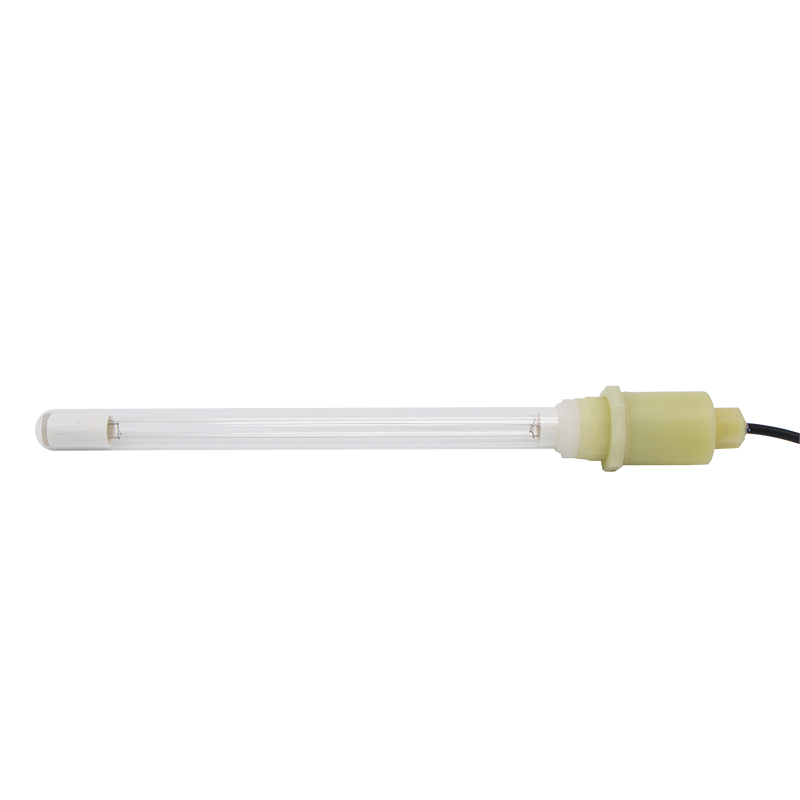

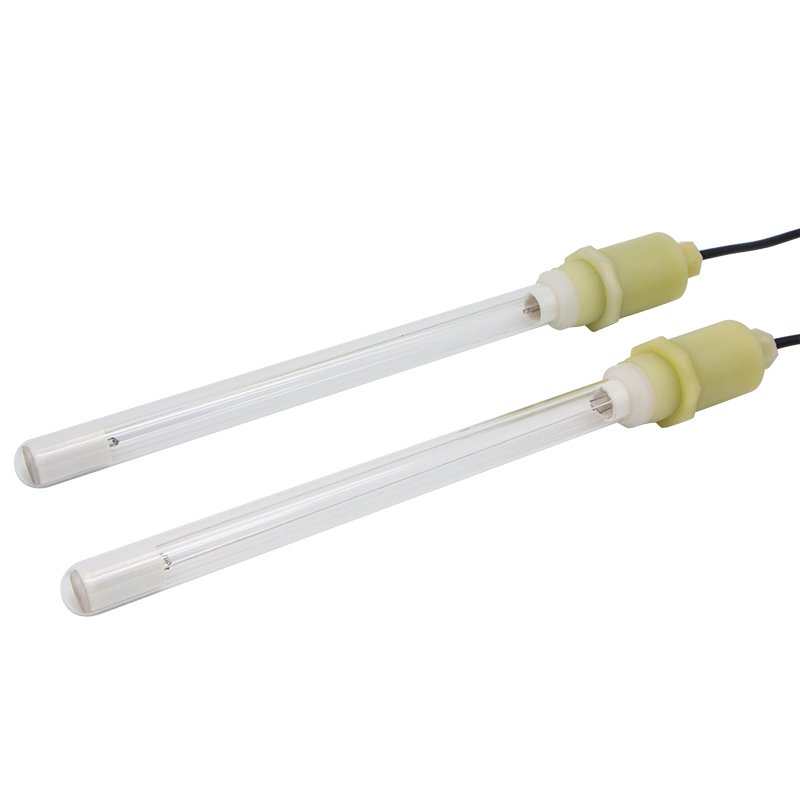

Submersible UV lamp
Material
High Quality Quartz Glass
Input Voltage
AC 220V( ± 10%)
Lifespan
8000 - 9000 Hours
Transport Package
Carton Box
Product Description
Technical Specification
| Model |
Diameter (mm) |
Length (mm) |
Power (W) |
Voltage (V) |
Current (mA) |
UV Output @1m (uw/cm²) |
Lamp Life (h) |

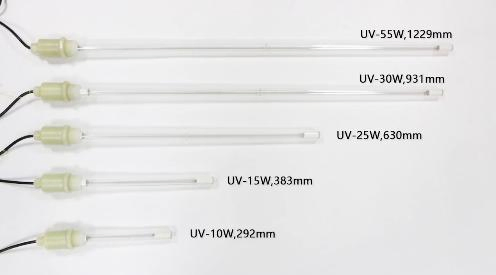

| UV-10W-Z212 | 23 | 292 | 10 | 32 | 425 | 26 | 9000 |
| UV-15W-Z303 | 23 | 383 | 15 | 44 | 425 | 43 | 9000 |
| UV-25W-Z550 | 23 | 630 | 25 | 80 | 425 | 85 | 9000 |
| UV-40W-Z851 | 23 | 931 | 40 | 110 | 425 | 150 | 9000 |
| UV-55W-Z1149 | 23 | 1229 | 55 | 180 | 425 | 174 | 9000 |
| UV-120W-Z1149 | 23 | 1229 | 120 | 90 | 800 | 350 | 9000 |
| UV-150W-Z1554 | 23 | 1634 | 150 | 110 | 800 | 420 | 9000 |
| UV-250W-Z1554 | 29 | 1634 | 250 | 130 | 2100 | 600 | 16000 |
| UV-320W-Z1554 | 29 | 1634 | 320 | 154 | 2100 | 750 | 16000 |
Application Areas

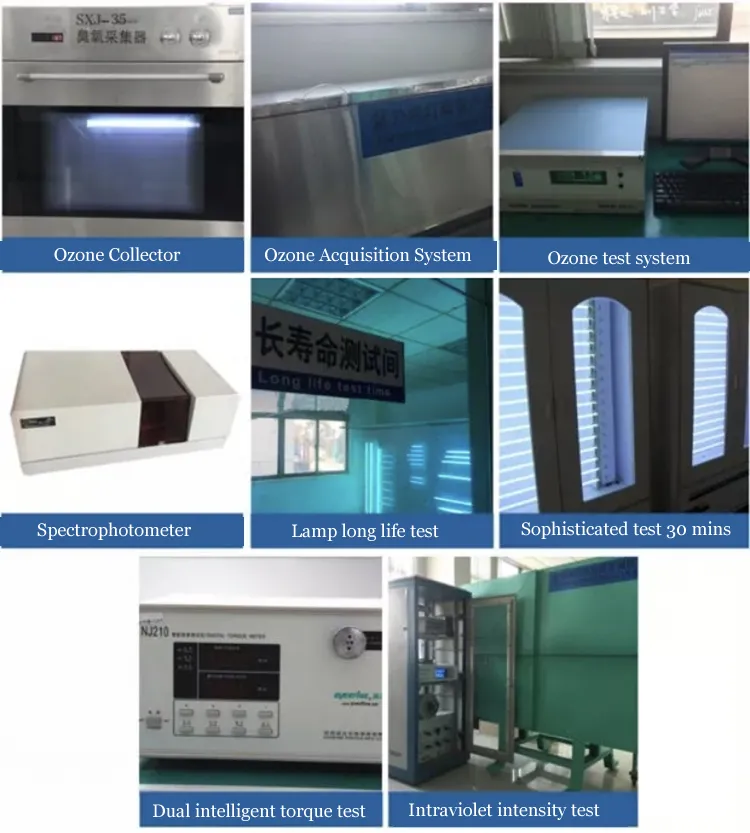

Professional Quality Control
Certifications
Our Professional Services
✔Free test samples available.
✔Providing 2% spare lamps and sleeves for free.
✔Full OEM & ODM customization services.
✔Security Deposit Return Guarantee for quality assurance.
✔On-time Delivery Guarantee with compensation for delays.
✔30-day quality satisfaction return policy.
✔One-year comprehensive warranty for all products.
Frequently Asked Questions
What is the wavelength of this UV lamp?
The lamp operates at a UVC wavelength of 253.7nm, which is highly effective for sterilization and disinfection.

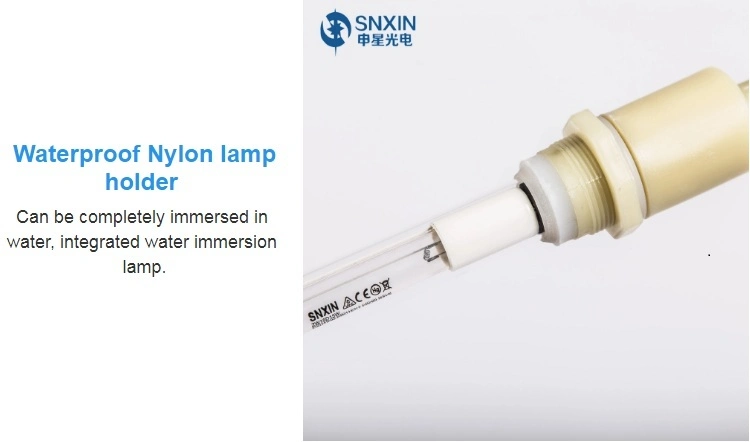

Can this lamp be fully submerged in water?
Yes, this is a professional submersible design specifically engineered for aquarium and water treatment system use.
What material is the lamp made of?
It is constructed from high-quality Quartz Glass, ensuring maximum UV transmission and excellent thermal stability.
How long does the bulb last?
The lamp has a long operational lifespan of approximately 8,000 to 9,000 hours under standard operating conditions.
What should I do if the product has quality issues?
We provide a one-year warranty. If any quality problems occur within one year, we will replace the unit for you free of charge.
Are there spare parts included?
Yes, we typically provide 2% spare lamps and sleeves for free to ensure your operations remain uninterrupted.
